2CCS884001R0647 ABBS804C-K125

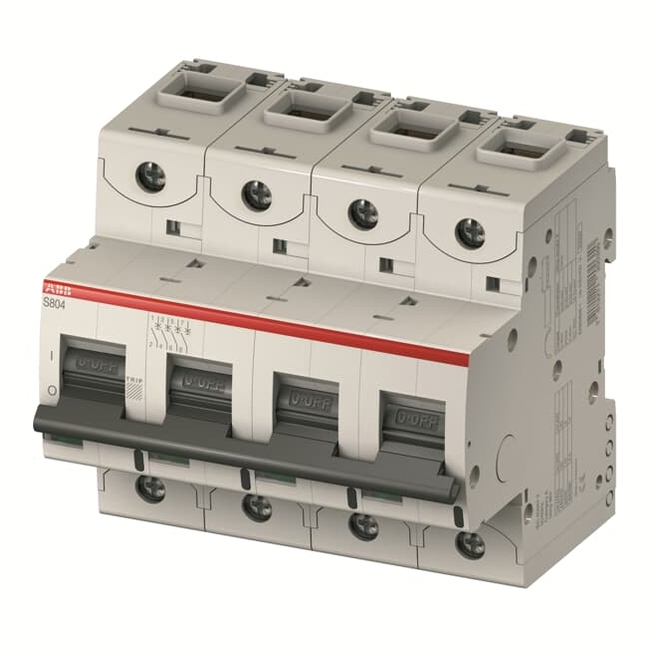

The S804C-K125 is a 4-pole High Performance Circuit breaker with K-Characteristic, with cage terminal and a rated current of 125 A. It is a current limiting device with a maximum breaking capacity of 25kA at 240/415V. It can be used for voltages up to 254/440V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804C-K125 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804C-K125 more comfortable. Due to the fast arc extinction of S804C-K125 your application will be secured.

EAN
7612271213992
Catalog Description
S804C-K125 High Performance MCB
Weight
980 g
Customs Tariff Number
85362020
Dimensions
(WxHxD/L) 106 mm x 95 mm x 82.5 mm
