2CCS814001R0801 ABBS804B-D80

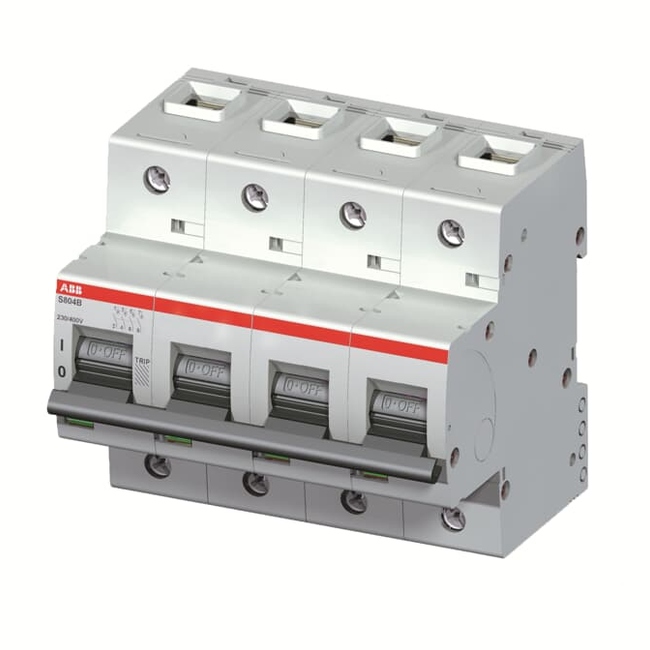

The S804B-D80 is a 4-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 80 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804B-D80 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804B-D80 more comfortable. Due to the fast arc extinction of S804B-D80 your application will be secured.

EAN
7612271416133
Catalog Description
S804B-D80 High Performance MCB
Weight
980 g
Customs Tariff Number
85362020
Dimensions
(WxHxD/L) 106 mm x 95 mm x 82.5 mm
