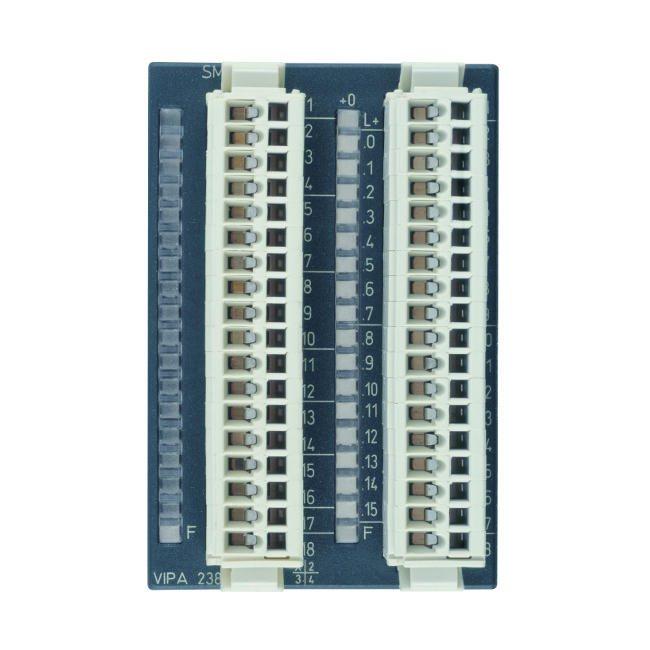

238-2BC00 Yaskawa ⍾ 2382BC00

238-2BC00 - Signal modules analog | Combination modules; Order no. : 238-2BC00; Type : SM 238C, Digital In-/Output, Counter, Analog In-/Output; Features : 16 (12)x DI, DC 24 V0 (4)x DO, DC 24 V, 1 A Up to 3x Counter up to 30 kHz 4x AI 12 Bit 3x voltage, current 1x RTD 2x AO 12 Bit voltage, current; Current consumption from backplane bus : 280 mA; Power loss : 5.5 W; Number of inputs : 16; Cable length, shielded : 1000 m; Cable length, unshielded : 600 m; Rated value : DC 20.4...28.8 V; Input voltage for signal "0" : DC 0...5 V; Input voltage for signal "1" : DC 15...28.8 V; Input current for signal "1" : 7 mA; Connection of Two-Wire-BEROs possible : Max. permissible BERO quiescent current : 1.5 mA; Input delay of "0" to "1" : 3 ms; Input delay of "1" to "0" : 3 ms; Number of simultaneously utilizable inputs horizontal configuration : 16; Number of simultaneously utilizable inputs vertical configuration : 16; Input characteristic curve : IEC 61131-2, type 1; Initial data size : 16 Byte; Number of outputs : 4; Cable length, shielded : 1000 m; Cable length, unshielded : 600 m; Rated load voltage : DC 20.4...28.8 V; Current consumption from load voltage L+ (without load) : 20 mA; Total current per group, horizontal configuration, 40°C : 4 A; Total current per group, horizontal configuration, 60°C : 2 A; Total current per group, vertical configuration : 4 A; Output voltage signal "1" at min. current : L+ (-125 mV); Output voltage signal "1" at max. current : L+ (-0.8 V); Output current at signal "1", rated value : 1 A; Output delay of "0" to "1" : 150 µs; Output delay of "1" to "0" : 100 µs; Lamp load : 5 W; Parallel switching of outputs for redundant control of a load : not possible; Parallel switching of outputs for increased power : not possible; Actuation of digital input : Switching frequency with resistive load : max. 1000 Hz; Switching frequency with inductive load : max. 0.5 Hz; Switching frequency on lamp load : max. 10 Hz; Internal limitation of inductive shut-off voltage : L+ (-52 V); Short-circuit protection of output : yes, electronic; Trigger level : 1.5 A; Output data size : 16 Byte; Number of inputs : 4; Cable length, shielded : 200 m; Rated load voltage : DC 24 V; Reverse polarity protection of rated load voltage : Current consumption from load voltage L+ (without load) : 70 mA; Voltage inputs : Min. input resistance (voltage range) : 120 kΩ; Input voltage ranges : +1 V ... +5 V0 V ... +10 V-10 V ... +10 V-400 mV ... +400 mV-4 V ... +4 V; Operational limit of voltage ranges : +/-0.3% ... +/-0.7%; Basic error limit voltage ranges with SFU : +/-0.2% ... +/-0.5%; Destruction limit voltage : max. 15V; Current inputs : Max. input resistance (current range) : 90 Ω; Input current ranges : +4 mA ... +20 mA0 mA ... +20 mA-20 mA ... +20 mA; Operational limit of current ranges : +/-0.3% ... +/-0.8%; Basic error limit current ranges : +/-0.2% ... +/-0.5%; Destruction limit current inputs (electrical current) : max. 50mA; Destruction limit current inputs (voltage) : max. 15V; Resistance inputs : Resistance ranges : 0 ... 600 Ohm0 ... 3000 Ohm; Operational limit of resistor ranges : +/-0.4%; Basic error limit : +/-0.2%; Destruction limit resistance inputs : max. 15V; Resistance thermometer inputs : Resistance thermometer ranges : Pt100Pt1000Ni100Ni1000; Operational limit of resistance thermometer ranges : +/-0.4% ... +/-1.0%; Basic error limit thermoresistor ranges : +/-0.2% ... +/-0.5%; Destruction limit resistance thermometer inputs : max. 15V; Technical unit of temperature measurement : °C; Resolution in bit : 16; Measurement principle : Sigma-Delta; Basic conversion time : 7 ms - 272 ms; Noise suppression for frequency : 50 Hz and 60 Hz; Initial data size : 8 Byte; Number of outputs : 2; Cable length, shielded : 200 m; Rated load voltage : DC 24 V; Reverse polarity protection of rated load voltage : Current consumption from load voltage L+ (without load) : 70 mA; Voltage output short-circuit protection : Voltage outputs : Min. load resistance (voltage range) : 1 kΩ; Max. capacitive load (current range) : 1 µF; Max. inductive load (current range) : 30 mA; Output voltage ranges : -10 V ... +10 V+1 V ... +5 V0 V ... +10 V; Operational limit of voltage ranges : +/-0.4% ... +/-0.8%; Basic error limit voltage ranges with SFU : +/-0.2% ... +/-0.4%; Destruction limit against external applied voltage : max. 15V; Current outputs : Max. in load resistance (current range) : 500 Ω; Max. inductive load (current range) : 10 mH; Typ. open circuit voltage current output : 13 V; Output current ranges : -20 mA ... +20 mA0 mA ... +20 mA0 mA ... +20 mA; Operational limit of current ranges : +/-0.3% ... +/-0.8%; Radical error limit current ranges with SFU : +/-0.2% ... +/-0.5%; : max. 15V; Settling time for ohmic load : 0.3 ms; Settling time for capacitive load : 1 ms; Settling time for inductive load : 0.5 ms; Resolution in bit : 12; Conversion time : 1.50 ms; Substitute value can be applied : yes; Output data size : 4 Byte; Status display : yes; Interrupts : yes; Process alarm : yes, parameterizable; Diagnostic interrupt : yes, parameterizable; Diagnostic functions : yes; Diagnostics information read-out : possible; Supply voltage display : green LED per group; Group error display : red SF LED; Channel error display : none; Between channels and backplane bus : Between channels and power supply : Max. potential difference between inputs (Ucm) : DC 4 V; Max. potential difference between inputs and Mintern (Uiso) : DC 75 V/ AC 50 V; Insulation tested with : DC 500 V; Input bytes : 8 + 16; Output bytes : 4 + 16; Parameter bytes : 18 + 71; Diagnostic bytes : 12 + 12; Material : PPE / PA 6.6; Mounting : Profile rail 35 mm; Dimensions (WxHxD) : 50.8 mm x 76 mm x 88 mm; Net weight : 150 g; Operating temperature : 0 °C to 60 °C; Storage temperature : -25 °C to 70 °C; UL certification : yes
