1SCA136801R1001 ABB ⍾ OS63GD000LAA3BZ

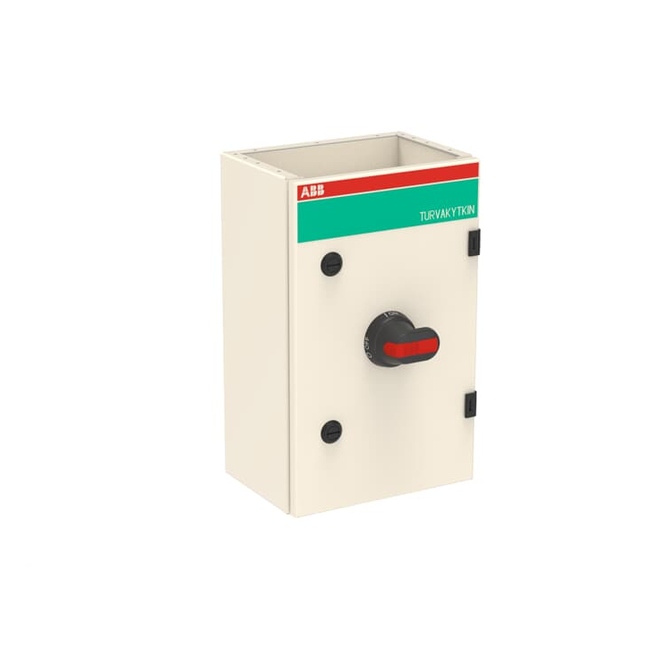

The enclosed switch fuse disconnector is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21). Cable entry plates needs to be added. There are different cable configurations, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.

Type

Enclosed Switch Fuses

Catalog description

OS63GD000LAA3BZ Enclosed switch fuse

Customs tariff number

85363030

Weight

7.81 kg / 17.22 lb

Dimensions

(WxHxD/L) 250 mm x 400 mm x 180 mm

EAN

6417019652696
