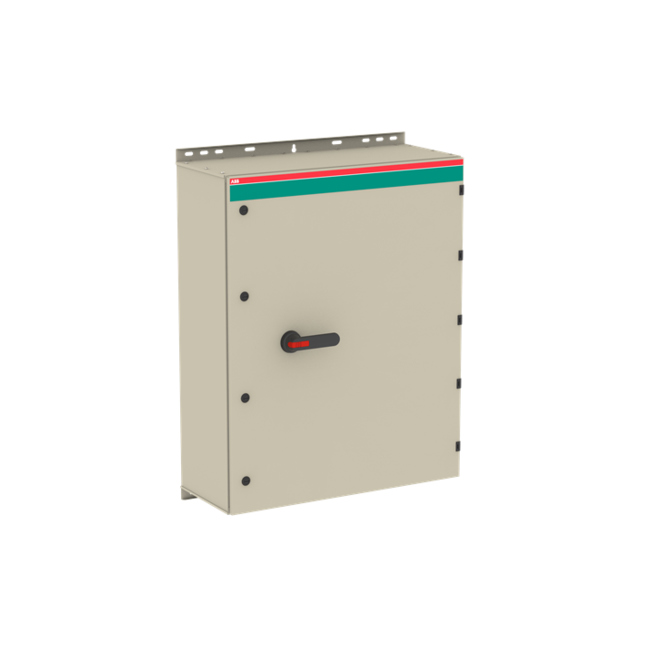

1SCA022321R0210 ABB ⍾ OS630BC2LUU3FZ

The enclosed switch fuse disconnector is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.

Type

Enclosed Switch Fuses

Catalog description

OS630BC2LUU3FZ Enclosed switch fuse

Customs tariff number

85363090

Weight

39.455 kg / 86.98 lb

Dimensions

(WxHxD/L) 800 mm x 1000 mm x 330 mm

EAN

6417019082301
