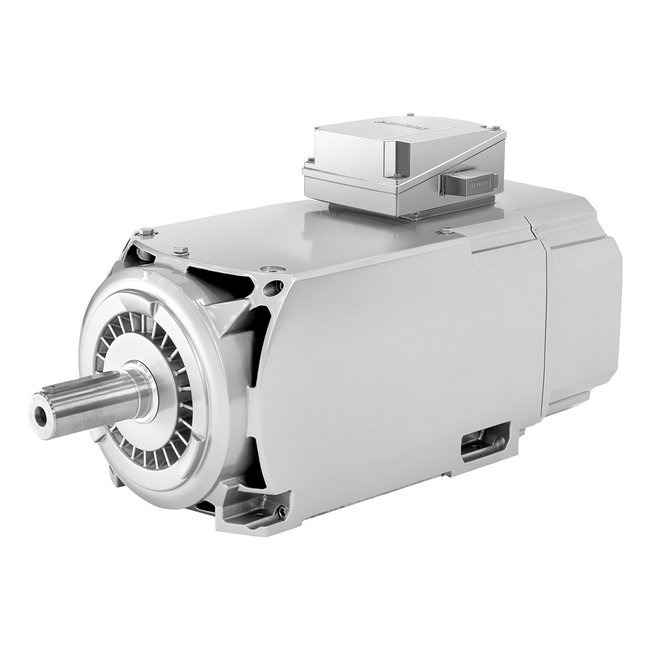

1PH8228-1DC00-2EA1 SIEMENS ⍾ 1PH82281DC002EA1

SIMOTICS M compact asynchronous motor 700 r/min, 82 kW 1119 Nm, 188 A, 315 V 800 r/min, 92 kW 1098 Nm, 182 A, 360 V 1000 r/min, 115 kW 1098 Nm, 182 A, 450 V forced ventilation direction of air flow DE-->NDE IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE A; SHAFT AND FLANGE ACCURACY GR. N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

Type

SIMOTICS M
