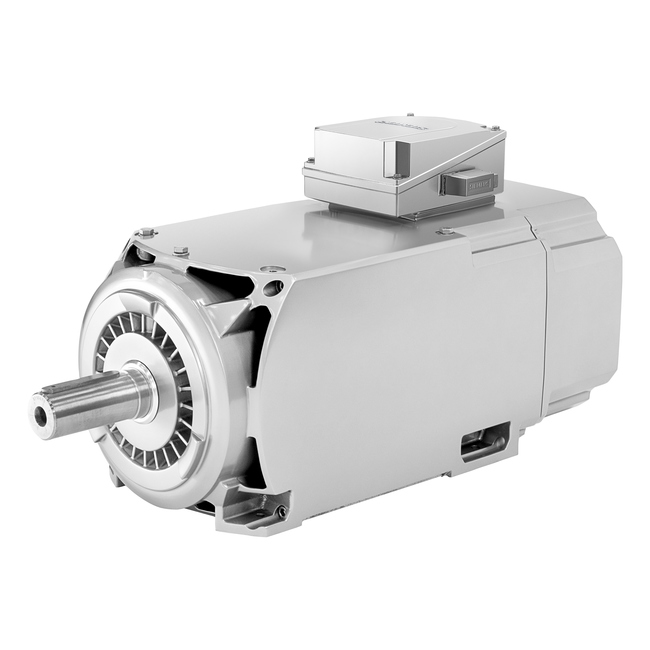

SIEMENS 1PH8226-1HD40-2EA2-Z K10+K40

1PH8226-1HD40-2EA2-Z K10+K40 SIEMENS ⍾ 1PH82261HD402EA2ZK10K40

SIMOTICS M Compact asynchronous motor 1000 rpm, 135 kW, 1289 Nm, 275 A, 340 V 1150 rpm, 155 kW, 1287 Nm, 270 A, 390 V 1350 rpm, 172 kW, 1217 Nm, 255 A, 460 V Open-circuit ventilation Direction of air flow NDE-->DE Degree of protection IP23 Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE A; SHAFT AND FLANGE ACCURACY GR. N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END K10: TERMINAL BOX NON DRIVE-END CABLE ROUTING DRIVE END SIGNAL CONNECTION TOP K40: RELUBRICATING EQUIPMENT DRIVE END AND NON-DRIVE END
