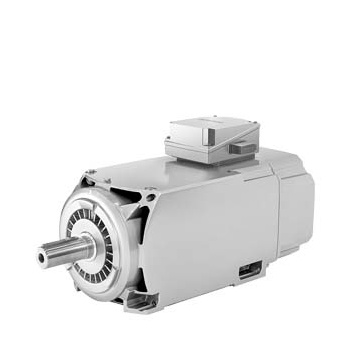

1PH8186-1HD01-2EA1 SIEMENS ⍾ 1PH81861HD012EA1

SIMOTICS M compact asynchronous motor 1000 r/min, 51 kW 487 Nm, 112 A 340 V 1150 r/min, 58 kW 482 Nm, 112 A 390 V 1350 r/min, 67 kW 474 Nm, 112 A 450 V forced ventilation direction of air flow DE-->NDE IP55 degree of protection Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) With temperature sensor KTY 84-130 DESIGN IM V5 SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE A; SHAFT AND FLANGE ACCURACY GR. N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

Type

SIMOTICS Phased out

Customs tariff number

85015290

Expected origin

CZ

Weight

422.000
