1PH8186-1DF00-2EA1-Z L00+L76+X04 SIEMENS ⍾ 1PH81861DF002EA1ZL00L76X04

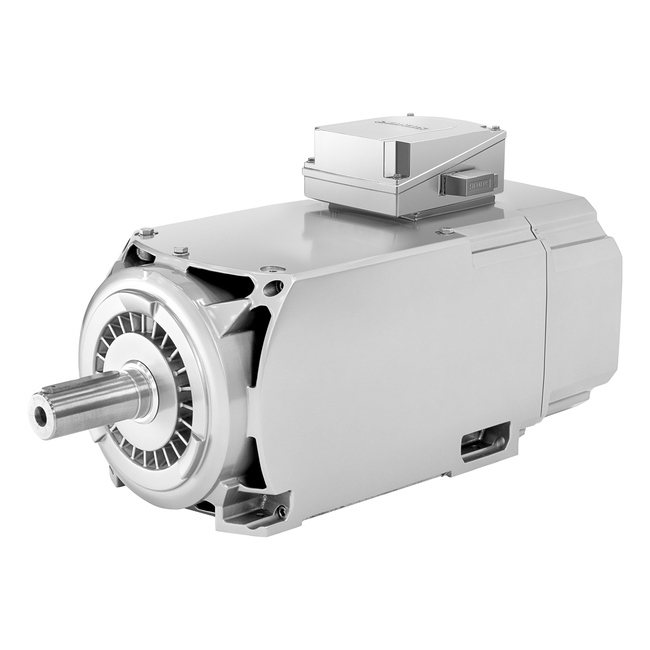

SIMOTICS M Compact induction motor 1500rpm, 74kW 471Nm, 166A, 330V 1750rpm, 85kW 464Nm, 164A, 385 V 2000rpm, 94kW 449Nm, 160 A, 445V forced ventilation Direction of air flow DE-->NDE Degree of protection IP55 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE A; SHAFT AND FLANGE ACCURACY GR. N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END L00: NEXT BIGGER TERMINAL BOX (1XB7322 --> 1XB7422, 1XB7422 --> 1XB7700) L76: EC fan 400 V 3 AC 50/60 Hz X04: PAINT FINISH RAL 7032 (PEBBLE GREY)

Type

SIMOTICS M

Customs tariff number

85015381

Expected origin

CZ

Weight

430.000 kg
