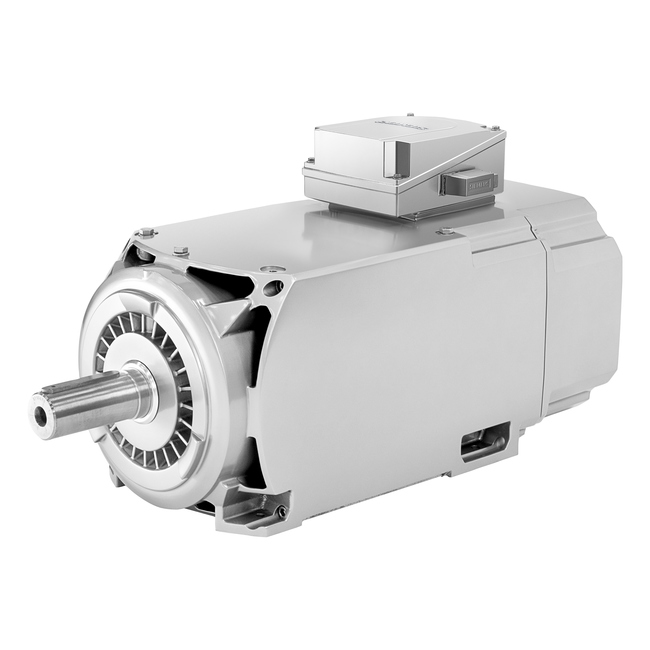

1PH8184-1HD40-2EC2-Z G14+K40 SIEMENS1PH81841HD402EC2ZG14K40

SIMOTICS M Compact asynchronous motor 1000 rpm, 57 kW, 544 Nm, 120 A, 340 V 1150 rpm, 65 kW, 540 Nm, 120 A, 390 V 1350 rpm, 74 kW, 523 Nm, 118 A, 450 V Open-circuit ventilation Direction of air flow NDE-->DE Degree of protection IP23 Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE A; SHAFT AND FLANGE ACCURACY GR. N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION RIGHT G14: FAN ASSEMBLY WITH AIR FILTER K40: RELUBRICATING EQUIPMENT DRIVE END AND NON-DRIVE END
