SIEMENS 1PH8166-1HF23-2DA2-Z Y84

1PH8166-1HF23-2DA2-Z Y84 SIEMENS ⍾ 1PH81661HF232DA2ZY84

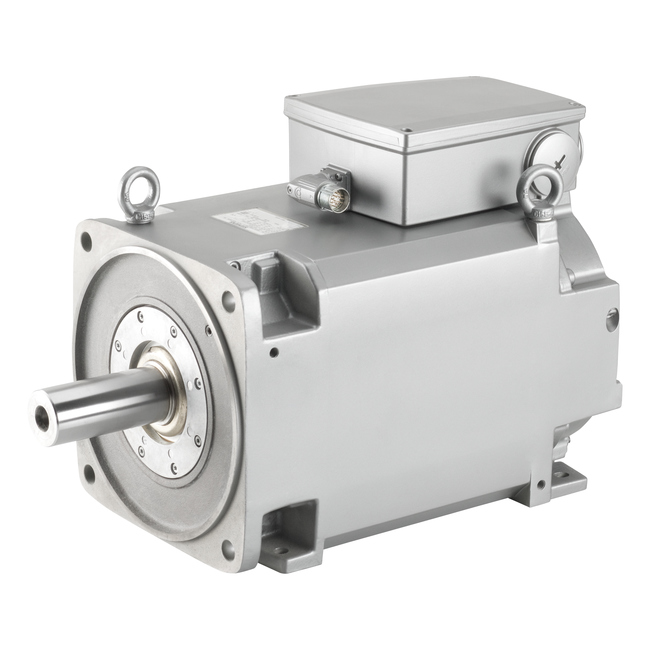

SIMOTICS M compact asynchronous motor 1500 rpm 52 kW 331 Nm 116 A 332 V 1750 rpm 61 kW 333 Nm 116 A 381 V 2000 rpm 68 kW 325 Nm 116 A 426 V 2200 rpm 75 kW 326 Nm 116 A 470 V water cooling degree of protection IP65 INCREMENT. ENCODER HTL 1024 S/R (ENCODER HTL1024S/R) TEMPERATURE SENSOR Pt1000 Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE SR/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END Y84: CUSTOMER INSTRUCTIONS ON THE RATING PLATE (MAX. 30 SIGNS)
