1PH8165-1DG20-1LA1 SIEMENS ⍾ 1PH81651DG201LA1

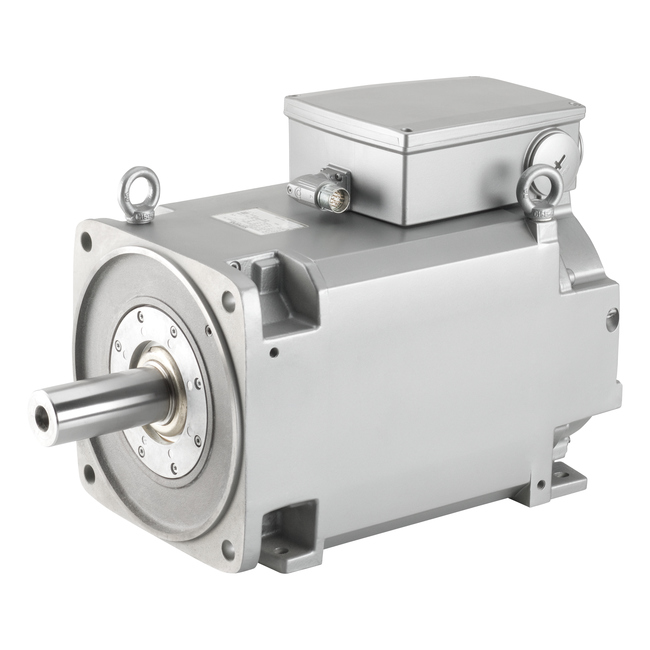

SIMOTICS M compact asynchronous motor 2000 rpm 53 kW 253 Nm 110 A 352 V 2300 rpm 60 kW 249 Nm 107 A 410 V 2650 rpm 65 kW 234 Nm 100 A 460 V 2800 rpm 68 kW 232 Nm 100 A 494 V water cooling degree of protection IP65 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

Type

SIMOTICS M

Customs tariff number

85015290

Expected origin

DE

Weight

264.000 kg
