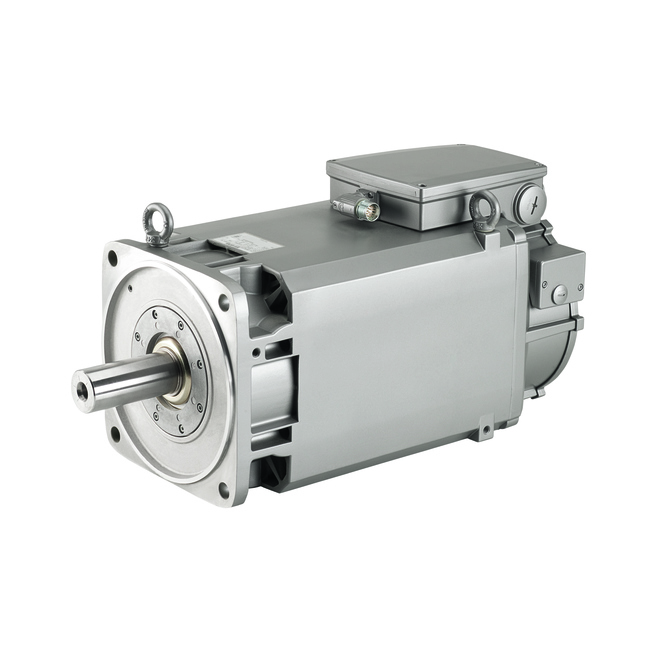

1PH8163-1AD00-1BA1 SIEMENS ⍾ 1PH81631AD001BA1
SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1000RPM, 22KW,210NM, 55A, 300V 1150RPM, 25KW,208NM, 55A, 343V 1350RPM, 28KW, 198NM, 52A, 400V FORCED VENTILATION; DIRECTION OF AIR FLOW DE --> NDE; DEGREE OF PROTECTION IP55 W/O ENCODER DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
 |
SIEMENS 1PH8163-1AD00-1BA1 Datasheet PDF (en) Size: 110 KB |
Download |
