1PH8137-1FG12-0GA1 SIEMENS ⍾ 1PH81371FG120GA1

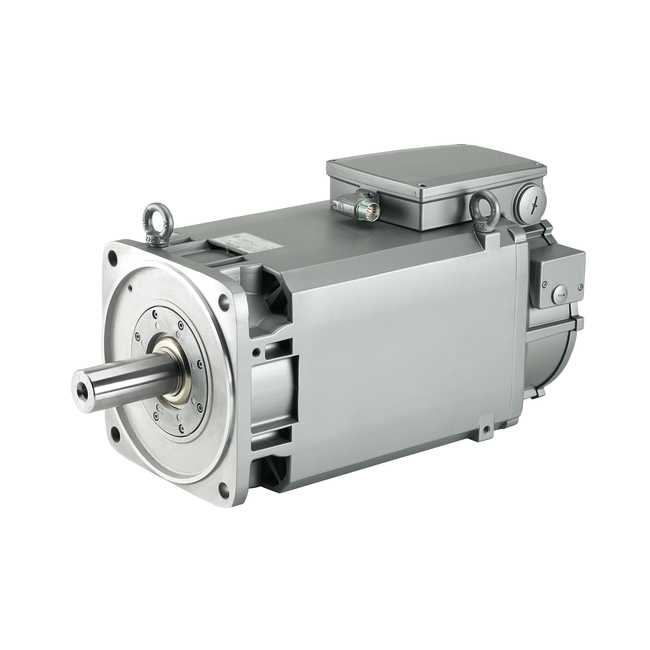

SIMOTICS M compact asynchronous motor 2000 rpm 28 kW 134 Nm 60 A 350 V 2300 rpm 29 kW 120 Nm 56 A 398 V 2650 rpm 30 kW 108 Nm 52 A 460 V 2800 rpm 31 kW 106 Nm 52 A 494 V forced ventilation; direction of air flow NDE--> DE; IP55 degree of protection Absolute encoder 22-bit Single-turn and 12-bit multi-turn (encoder AM22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

Type

SIMOTICS M

Customs tariff number

85015230

Expected origin

DE

Weight

141.000 kg
