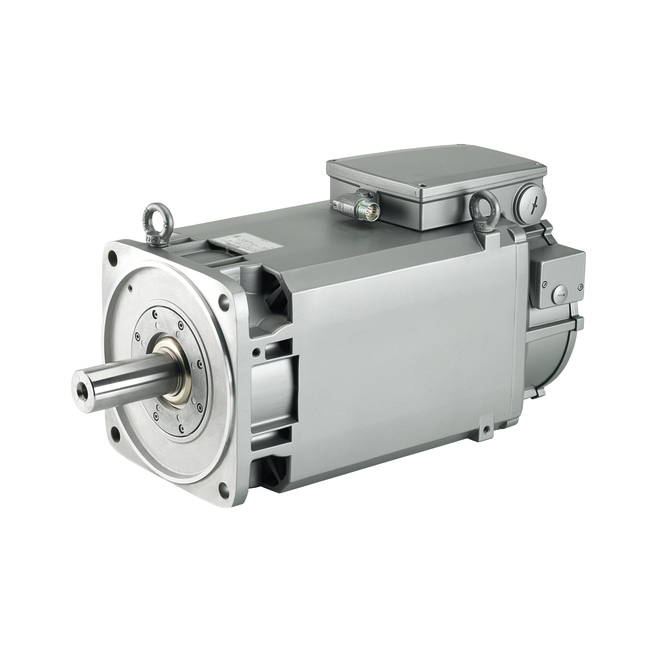

1PH8133-3FG12-2AA1-Z U60 SIEMENS ⍾ 1PH81333FG122AA1ZU60

SIMOTICS M compact asynchronous motor 2000 rpm 20 kW 96 Nm 45 A 350 V 2300 rpm 22.5 kW 93 Nm 44 A 400 V 2650 rpm 24 kW 86 Nm 41 A 456 V 2800 rpm 25 kW 85 Nm 41 A 480 V forced ventilation; direction of air flow NDE--> DE; IP55 degree of protection Absolute encoder 22-bit Single-turn and 12-bit multi-turn (encoder AM22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END U60: HOLDING BRAKE 230 V

Type

SIMOTICS M

Customs tariff number

85015230

Expected origin

DE

Weight

152.000 kg
