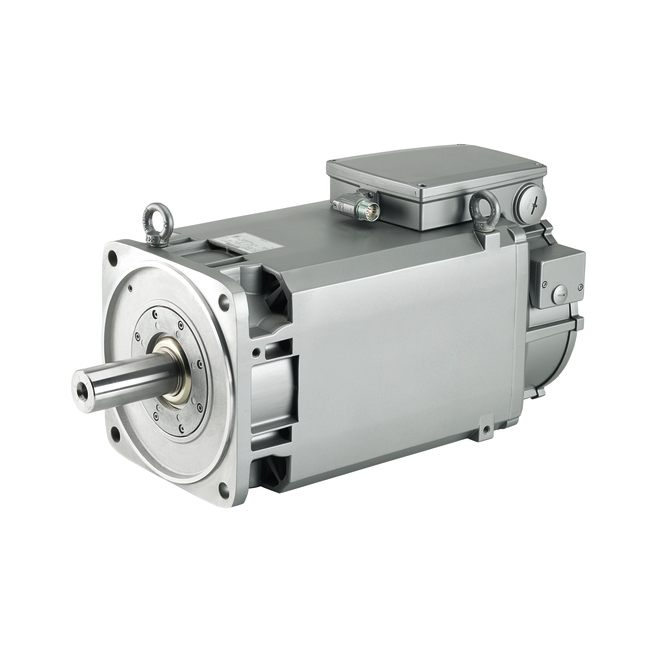

1PH8103-1DF02-1DA1 SIEMENS ⍾ 1PH81031DF021DA1
SIMOTICS M Compact induction motor 1500rpm, 5.5 kW 35Nm, 13.1A, 342V 1750rpm, 6.3kW 34Nm, 13.5A, 412V 2000rpm, 7.0 kW 33Nm, 12.7A, 460 V forced ventilation; direction of air flow DE--> NDE; Degree of protection IP55 INCREMENTAL ENCODER 22 BIT WITH COMMUTATING POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: SR/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
 |
SIEMENS 1PH8103-1DF02-1DA1 Datasheet PDF (en) Size: 109 KB |
Download |
