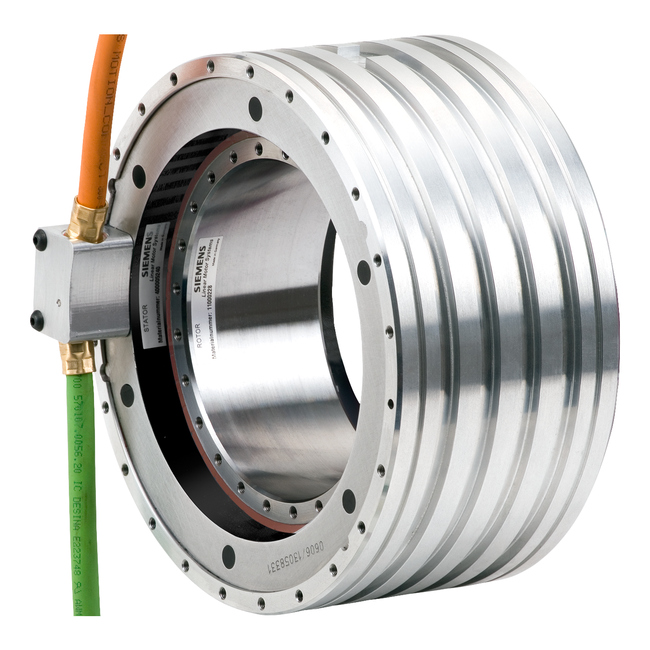

1FW6150-8NB05-1JD2 SIEMENS ⍾ 1FW61508NB051JD2
SIMOTICS T TORQUE MOTOR; EXTERNAL COOLING JACKET; TANGENTIAL CABLE OUTLET; POWER CABLE 0,5M WITH CONNECTOR SIZE 1; SIGNAL CABLE 0,5M WITH CONNECTOR M17 DIAM 385MM; LENGTH 110MM; MAX TORQUE 710NM; MAX ROT SPEED 230 RPM; MAX CURRENT 44 ARMS; WHEN USING THE DIRECT MOTORS ON FORK HEADS FOR MACHINE TOOLS OR ROBOTS A LICENSE FOR US PATENT US5584621 AND THE CORRESPONDING WORLDWIDE PATENTS MAY BE REQUIRED
- Type
- SIMOTICS T
Related in 1FW6150 / SIMOTICS T ⍾ Page 1
-
1FW6150-0PB07-2JC2
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; EXTERNAL COOLING JACKET; AXIAL CABLE OUTLET; DIAM 385MM; LENGTH 130MM; MAX TORQUE 994NM; MAX ROT SPEED 260 RPM; MAX CU …
-
1FW6150-8NB05-1JC2
SIMOTICS T TORQUE MOTOR; EXTERNAL COOLING JACKET; TANGENTIAL CABLE OUTLET; DIAM 385MM; LENGTH 110MM; MAX TORQUE 710NM; MAX ROT SPEED 230 RPM; MAX CURRENT 44 ARMS; WHEN USING THE DI …
-
1FW6150-8NB10-4FC2
SIMOTICS T STATOR EXTERNAL COOLING JACKET; TANGENTIAL CABLE OUTLET; DIAM 385MM; LENGTH 160MM; MAX TORQUE 1420NM; MAX ROT SPEED 300 RPM; MAX CURRENT 100 ARMS; WHEN USING THE DIRECT …
