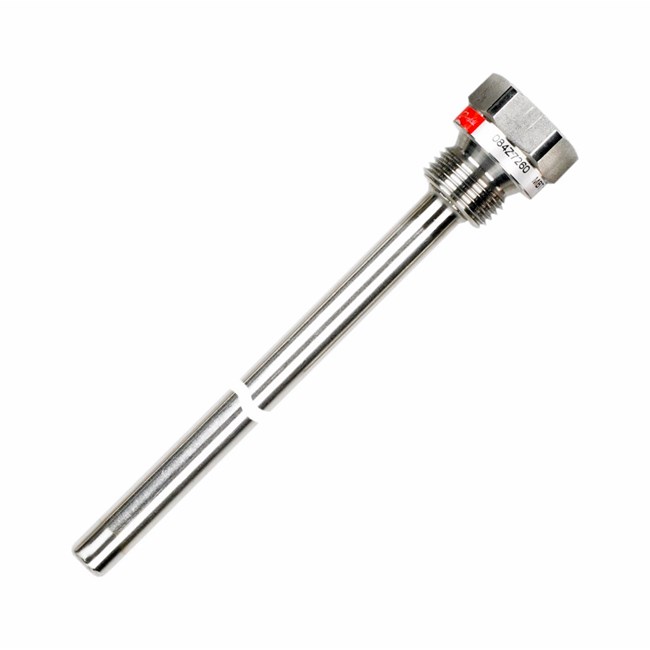

084Z7259 Danfoss
Sensor pocket, MBT 120 Protection tube diameter [mm]: 11, Insertion length [mm]: 100, Process connection type: G, 1/2, Temperature range [°C]: -50 - 200, Protection tube material: AISI 316 TI, Used for product: MBT 3560, MBT 5560
- Type
- Sensor pockets - for temperature sensors
- Weight
- 0.1 kg
- EAN
- 5702423201396
 |
MBT 120 Sensor Pocket Technical Specifications (en) Size: 56 KB |
Download |
