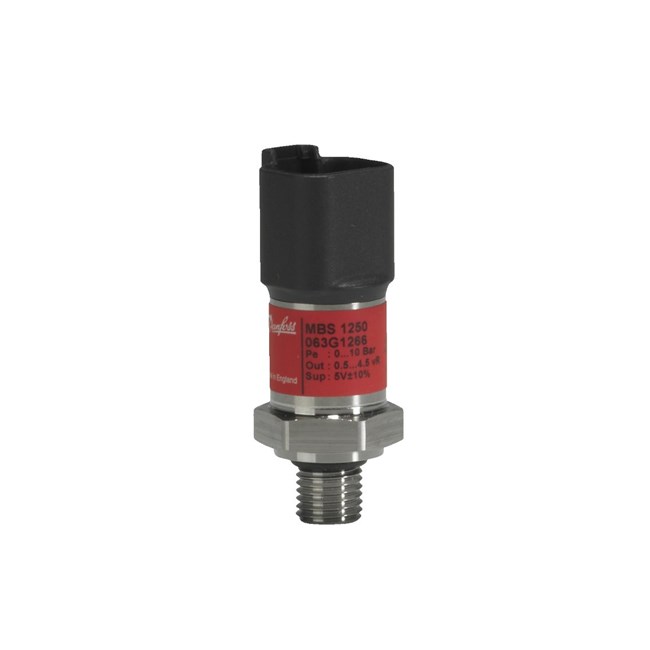

063G2126 Danfoss

Type Code: MBS 1250; Weight: 0.069 Kg; - common: PIN C; + output: PIN B; + supply: PIN A; Accuracy (typ.) ±FS: 0,5 %; Ambient temp.: -40 - 125 °C; Ambient temp.: -40 - 257 °F; Burst pressure: 690,0 bar; Burst pressure: 10.000 psig; Compensated temp. range: -40 - 125 °C; Compensated temp. range: -40 - 257 °F; EAN no.: 5702428932349; Electr. conn. comments: Sn coated; Electr. conn. type: Deutsch, 3 pin, Male; Enclosure rating: IP67; Medium temp. range: -40 - 125 °C; Medium temp. range: -40 - 257 °F; Output sign.: Voltage; Output sign. type: 0,5 - 4,5 V; Overload press. max.: 103,0 bar; Overload press. max.: 1.500 psig; Pack format: Multi pack; Pressure conn. HEX: 22,0; Pressure conn. std.: SAE J1926/2; Pressure conn. type: UNF - 7/16-20 Male; Pressure range: 0,00 - 500,00 psi; Press. unit ref.: Gauge (relative); Prod. group: Sensors; Prod. name: Pressure transmitter; Pulse-snubber: Yes; Pack qty.: 48 PC; Response time max.: 1 ms; Spec. key: MBS 1250-661C-C7BD08; Supply volt.: 8,00 - 30,00 V.

Type

MBS 1250 pressure transmitters
