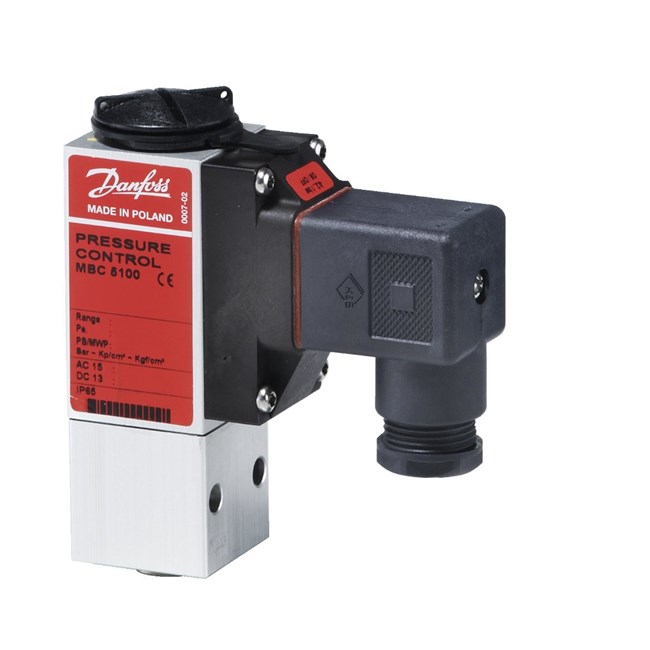

061B510266 Danfoss

Type Code: MBC 5100; Weight: 0.260 Kg; Ambient temp.: -40 - 85 °C; Ambient temp.: -40 - 185 °F; Approval: ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, NKK, RINA, RMRS; Burst pressure: 1.200,0 bar; Contact function: SPDT; Contact rating: AC15=0.5 A, 250 V; Contact rating: DC13=12 W, 125 V; Diff. max. range setting: 50,00 bar; Diff. min. range setting: 20,00 bar; EAN no.: 5702423212767; Electr. conn. Male/Female: Female; Electr. conn.: DIN-plug; Electr. conn.: EN 175301-803-A Pg 11; Electr. spec. standard: EN 60947-5; Enclosure rating: IP65; Max. test pressure: 600,0 bar; Max. test pressure: 8.702,0 psig; Max. Working Pressure: 600,0 bar; Max. Working Pressure: 8.700 psig; Pack format: Multi pack; Pressure conn. std.: ISO 228-1; Pressure conn. type: G - 1/4 Female; Pressure sensing elem.: PISTON; Product accessories: Switches accessories; Prod. description: Pressure switch; Prod. group: Switches and thermostats; Prod. name: Pressure switch; Pack qty.: 32 PC; Regul. range: 40,00 - 400,00 bar; Regul. range: 4,00 - 40,00 MPa; Serviceable: No; Spec. key: 5651-1CB04.

Type

MBC 5100, Block-type compact pressure switches for marine applications
