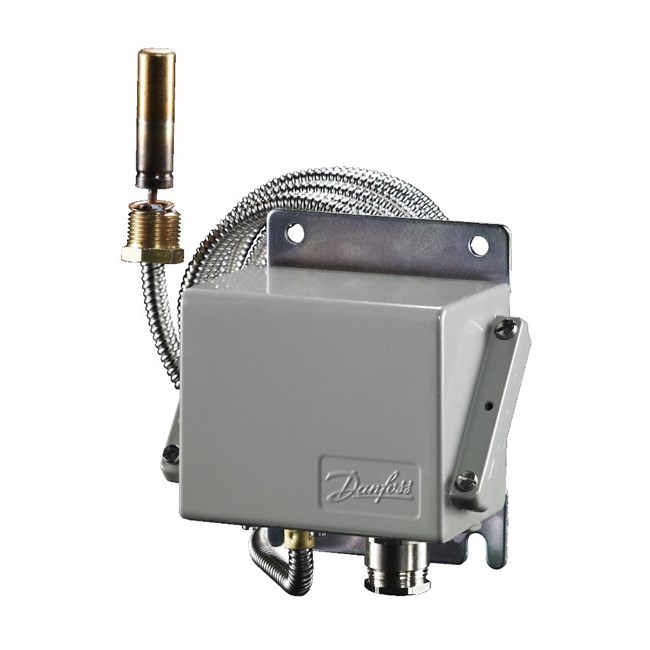

060L315366 Danfoss

Type Code: CAS180; Weight: 1.24 Kg; Ambient temp.: -25 - 70 °C; Ambient temp.: -32 - 158 °F; Approval: ABS, BV, CCC, CE, DNV, EAC, GL, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK; Cap. tube length: 78 3/4 in; Cap. tube length: 2.000 mm; Charge type: Adsorption; Conn. for pocket/hose: M 18 x 1.5; Contact function: SPDT; Contact rating: AC14=0.1 A, 220 V; Contact rating: AC15=0.1 A, 220 V; Contact rating: DC13=12 W, 125 V; Diff. min. range setting: 2,0 K; Diff. min. range setting: 2,0 °C; Diff. (FS): 2,0 K; Diff. type: Fixed (max. value); EAN no.: 5702423148011; Electr. conn. comments: Metal cable gland; Electr. conn. Male/Female: Female; Electr. conn.: Screwed cable entry; Electr. conn. size: Pg 13.5; Electr. conn. std.: DIN 40430; Electr. spec. standard: EN 60947-4/-5; Enclosure rating: IP67; Max. sensor temp.: 220 °C; Max. sensor temp.: 428,0 °F; Pack format: Multi pack; Parts incl.: Gasket set; Product accessories: Switches accessories; Prod. description: Thermostat; Prod. group: Switches and thermostats; Prod. name: Thermostat; Pack qty.: 10 PC; Reset: AUTO; Sensor pocket length min.: 3 in; Sens. pocket length min.: 75 mm; Sensor size (ø x L): 1/2 x 2 1/2 in; Sensor size (ø x L): 13 x 63 mm; Sensor type: Remote bulb; Serviceable: No; Temp. range: 70 - 120 °C; Temp. range: 158 - 248 °F.

Type

CAS, Temperature switches
