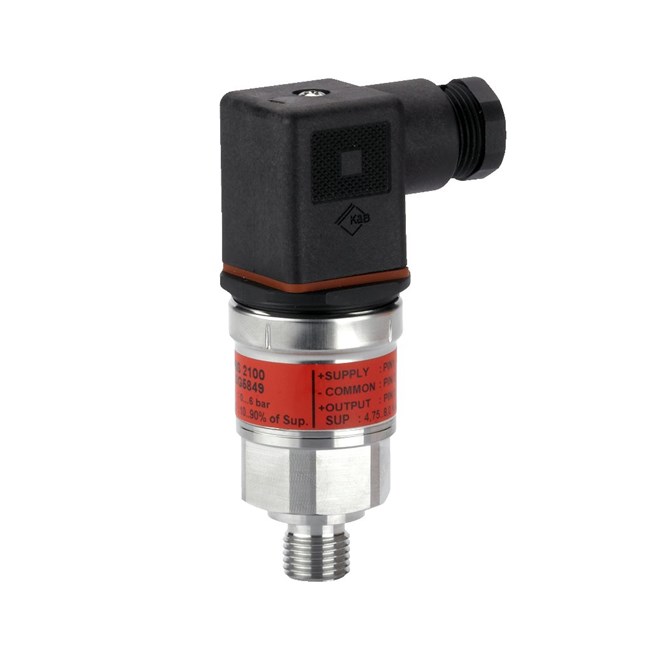

060G5849 Danfoss

Type Code: MBS 2100; Weight: 0.155 Kg; - common: PIN 2; + output: PIN 3; + supply: PIN 1; Accuracy (max.) ±FS: 1,00 %; Accuracy (typ.) ±FS: 0,5 %; Adj. zero point/span: No; Ambient temp.: -40 - 125 °C; Ambient temp.: -40 - 257 °F; Approval: ATEX; Approval comments: ATEX Ex nA IIA T3 Gc; Comments: SEAL RING VITON; Compensated temp. range: 0 - 100 °C; Compensated temp. range: 32 - 212 °F; EAN no.: 5702423289066; Electr. conn. type: DIN-plug, Pg 11, EN 175301-803-A, Male and Female; Enclosure rating: IP65; Flush diaphr.: No; Intrins. safe: No; Medium temp. range: -40 - 125 °C; Medium temp. range: -40 - 257 °F; Non-linearity BFSL ±FS [%]: 0,20 %; Output sign. type: 10 - 90 % ratiometric; Overload press. max.: 36,0 bar; Pack format: Multi pack; Pressure conn. HEX: 27,0; Pressure conn. notes: A; Pressure conn. std.: DIN 3852-E; Pressure conn. std.: ISO 1179-2 (Form E); Pressure conn. type: G - 1/4 Male; Pressure range: 0,0000 - 6,0000 bar; Press. unit ref.: Gauge (relative); Prod. group: Sensors; Prod. name: Pressure transmitter; Pulse-snubber: No; Pack qty.: 14 PC; Response time max.: 4 ms; Spec. key: MBS 2100-1816-A6GB04-1; Supply volt.: 4,75 - 8,00 V.

Type

MBS 2100 pressure transmitters
