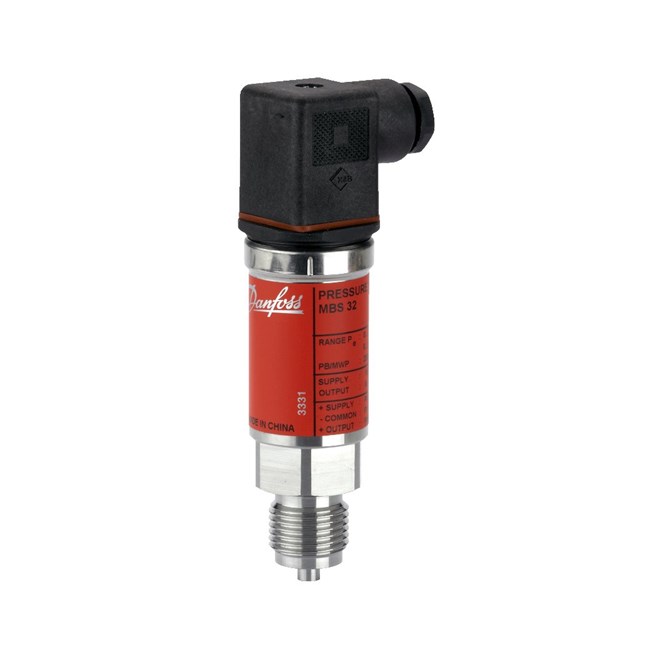

060G1261 Danfoss

Type Code: MBS 32; Weight: 0.222 Kg; - common: PIN 2; + output: PIN 3; + supply: PIN 1; Accuracy (max.) ±FS: 0,80 %; Accuracy (typ.) ±FS: 0,3 %; Adj. zero point/span: No; Ambient temp.: -40 - 85 °C; Ambient temp.: -40 - 185 °F; Approval: ATEX; Approval comments: ATEX Ex nA IIA T3 Gc; Compensated temp. range: 0 - 80 °C; Compensated temp. range: 32 - 176 °F; EAN no.: 5702423060832; Electr. conn. type: DIN-plug, Pg 9, EN 175301-803-A, Male and Female; Enclosure rating: IP65; Flush diaphr.: No; Intrins. safe: No; Medium temp. range: -40 - 85 °C; Medium temp. range: -40 - 185 °F; Non-linearity BFSL ±FS [%]: 0,20 %; Output sign.: Voltage; Output sign. type: 0 - 10 V; Overload press. max.: 600,0 bar; Overload press. max.: 60,0 MPa; Pack format: Multi pack; Pressure conn. HEX: 27,0; Pressure conn. std.: EN 837; Pressure conn. type: G - 1/2 Male; Pressure range: 0,0000 - 250,0000 bar; Pressure range: 0,00 - 25,00 MPa; Press. unit ref.: Gauge (relative); Prod. group: Sensors; Prod. name: Pressure transmitter; Pulse-snubber: No; Pack qty.: 14 PC; Response time max.: 4 ms; Spec. key: MBS 32-3415-A1AB08-0; Supply current max.: 8 mA; Supply volt.: 15,00 - 30,00 V.

Type

MBS 32 pressure transmitters
