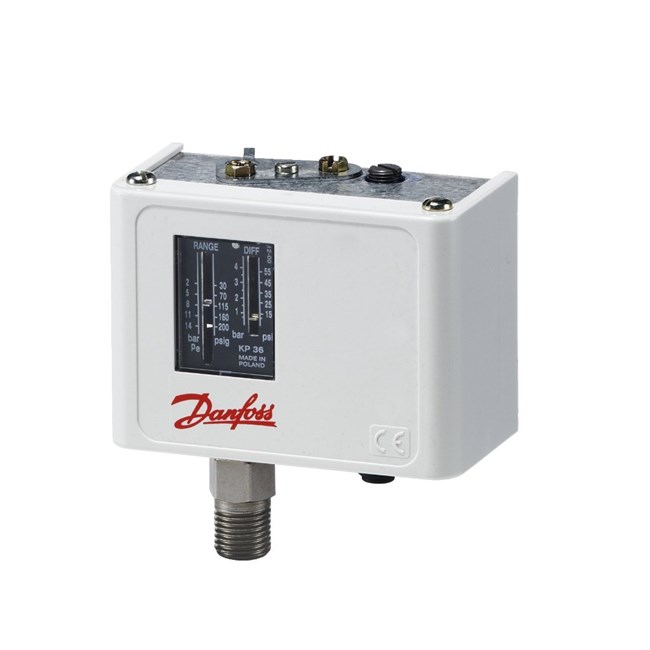

060-122166 Danfoss ⍾ 060122166

Type Code: KP36; Weight: 0.300 Kg; Amb. Temp. Note: 80 °C/176 °F for max 120 min; Ambient temp.: -40 - 65 °C; Ambient temp.: -40 - 149 °F; Approval: c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, CCC, CE, EAC, FM, LVD, PZH, RINA, RMRS, RoHS China; Contact function: SPDT; Contact rating: AC1=16 A, 400 V; Contact rating: AC15=10 A, 400 V; Contact rating: AC3=16 A, 400 V; Contact rating: DC13=12 W, 220 V; Contact rating: LR=112 A, 400 V; Diff.: 0,50 - 2,00 bar; Diff.: 7,00 - 29,00 psi; EAN no.: 5702423146741; Electr. conn.: Rubber cable gland; Electr. conn. size: 6-14 mm; EN 60947 electrical properties: Insulation: 400V; EN 60947 electrical properties: Pollution degree: 3; EN 60947 electrical properties: Rated impulse voltage: 4 kV; EN 60947 electrical properties: Short circuit prot, fuse: 16A; EN 60947 wiring properties: Flex, ferrules: 0.5-1.5 mm2; EN 60947 wiring properties: Flex, no ferrules: 0.7-2.5 mm2; EN 60947 wiring properties: Solid/stranded: 0.75-2.5 mm2; Enclosure rating: IP30; Nema rating (~): 1; Max. test pressure: 22,0 bar; Max. test pressure: 319,0 psig; Max. Working Pressure: 17,0 bar; Max. Working Pressure: 245 psig; Pack format: Multi pack; Pressure conn. std.: ISO 228-1; Pressure conn. type: G - 1/4 Male; Pressure sensing elem.: Bellows; Product accessories: Switches accessories; Prod. description: Pressure switch; Prod. group: Switches and thermostats; Prod. name: Pressure switch; Pack qty.: 36 PC; Regul. range: 4,00 - 12,00 bar; Regul. range: 58,00 - 174,00 psig; Reset: AUTO; Serviceable: No; UL approval file name: E31024; UL approval file name: MH27572.

Type

KP, Pressure switches for light industry
