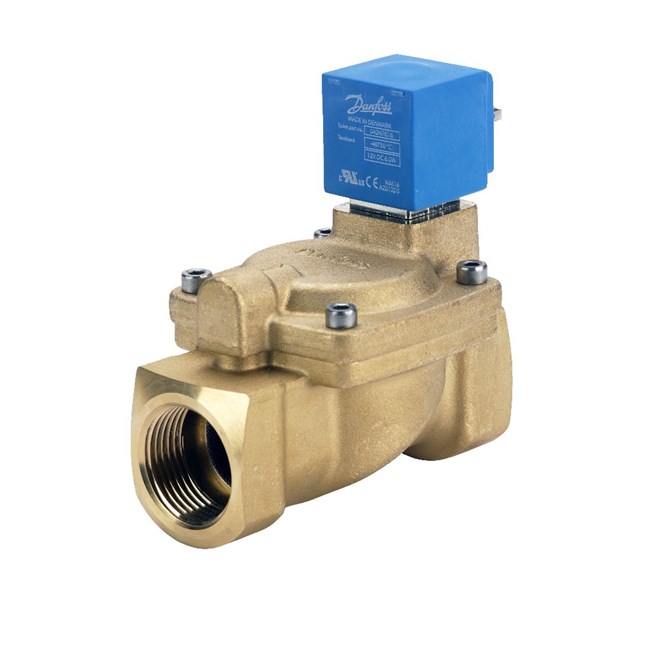

042U426632 Danfoss

Type Code: EV220W; Weight: 1.11 Kg; Actuator size: 9 mm clip-on W; Actuator size: 0.35 in; Ambient temp. max.: 50 °C; Ambient temp. max.: 122 °F; Body mat.: Brass; Coil: AS 230 V a.c. 50/60 Hz; Coil option: Clip-on; Coil type: AS; Connection: G 1; Conn. Int./Ext.: Internal; Conn. std.: ISO 228-1; Cv value: 8,100 gpm US; Diff. pressure: 0,3 - 16 bar; Diff. pressure: 4,4 - 232,1 psi; EAN no.: 5702428833394; Electr. conn.: Spade DIN 43650-A; Enclosure rating: IP65; Freq.: 50/60 HZ; Function: N C; Kv value: 7,000 m3/h; Max. Working Pressure: 50,0 bar; Max. Working Pressure: 725 psig; Medium temp. range: -10 - 90 °C; Medium temp. range: 14 - 194 °F; Number of ways: 2/2; Operation: Servo-operated (diaphragm); Orifice size: 22,00 mm; Orifice size: 7/8 in; Pack format: Multi pack; : 8,0 W; Power consumpt. 60Hz: 7,0 W; Prod. group: Solenoid valves; Prod. name: Solenoid valve; Pack qty.: 12 PC; Seal mat.: NBR; Supply volt.: 230 V; Supply voltage 50Hz Max: 230 V; Supply voltage 60Hz Max: 240 V; Supply voltage 60Hz Min [V]: 208 V; Type designation: Solenoid valve.

Type

EV220W (10-50 series), NBR, Servo-operated 2/2-way solenoid valves
