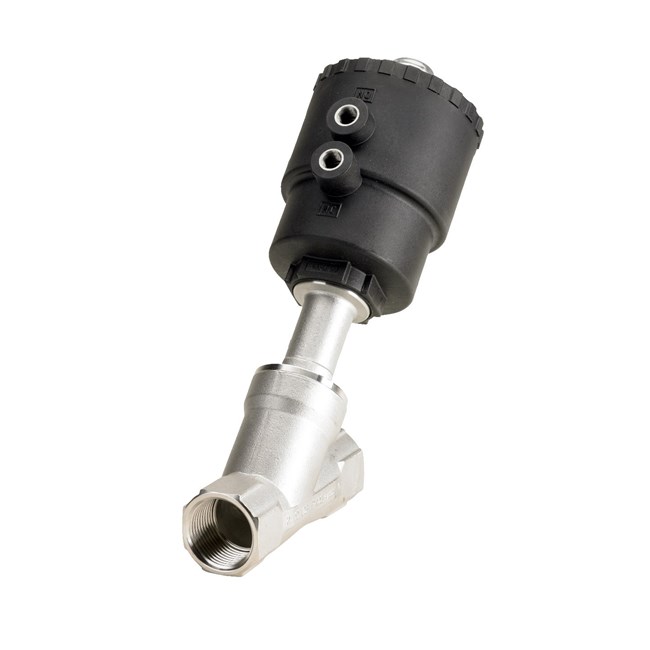

042N4552 Danfoss
Type Code: AV210B; Weight: 1.26 Kg; Ambient temp.: -30 - 60 °C; Ambient temp.: -22 - 140 °F; Body mat.: Stainless steel; Closing: Against flow; Connection: NPT 3/4; Conn. Int./Ext.: Internal; Control head diam. (ø): 50 mm; Control pressure range: 4,00 - 10,00 bar; Control pressure range: 58,0 - 145,0 psig; Cv value: 11,500 gpm US; Diff. pressure: 0 - 10 bar; EAN no.: 5702423194469; Function: N C; Kv value: 10,000 m3/h; Max. test pressure: 37,5 bar; Max. test pressure: 544,0 psig; Max. Working Pressure: 25,0 bar; Max. Working Pressure: 363 psig; Medium temp. range: -30 - 180 °C; Medium temp. range: -22 - 356 °F; Operation: Piston (angle); Orifice size: 20,00 mm; Pack format: Multi pack; Prod. group: Externally operated valves; Prod. name: Angle-seat ext operated valve; Pack qty.: 8 PC; Seal mat.: PTFE.
