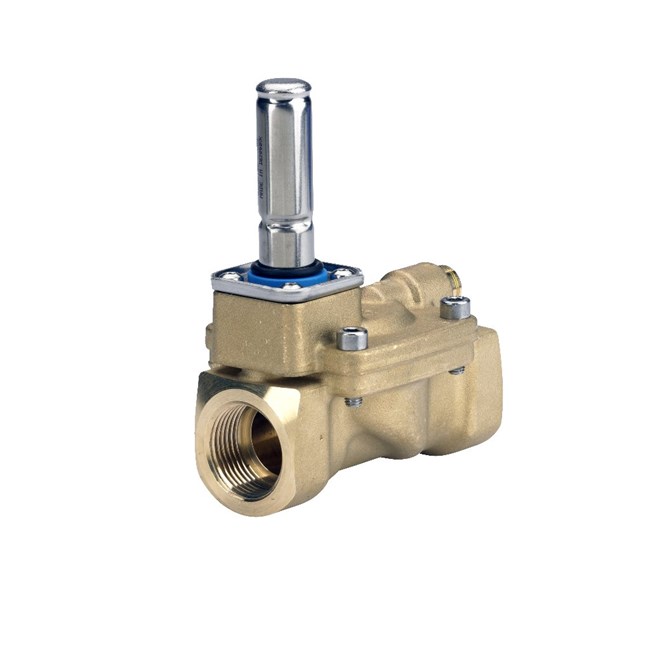

032U7122 Danfoss
Type Code: EV220B; Weight: 0.868 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Connection: G 3/4; Conn. Int./Ext.: Internal; Conn. std.: ISO 228-1; Cv value: 9,250 gpm US; Diff. pressure: 0,3 - 16 bar; Diff. pressure: 4,4 - 232,1 psi; EAN no.: 5702423018864; Function: N O; Kv value: 8,000 m3/h; Max. test pressure: 20,0 bar; Max. test pressure: 290,0 psig; Max. Working Pressure: 16,0 bar; Max. Working Pressure: 232 psig; Medium temp. range: -30 - 140 °C; Medium temp. range: -22 - 284 °F; Number of ways: 2/2; Operation: Servo-operated (diaphragm); Orifice size: 20,00 mm; Orifice size: 3/4 in; Pack format: Multi pack; Prod. group: Solenoid valves; Prod. name: Solenoid valve; Pack qty.: 24 PC; Seal mat.: EPDM; Type designation: Solenoid valve.
Related in EV220B (15-50 series), Servo-operated 2/2-way solenoid valves ⍾ Page 1
-
032U0260
Type Code: Spare part; Weight: 0.128 Kg; Description: MANUEL OPENING UNIT; EAN no.: 5702428308250; Pack format: Multi pack; Pack qty.: 90 pc; Type designation: Sub-part; Used for: …
-
032U451131
Type Code: EV220B; Weight: 0.938 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 230 V a.c. 50 …
-
032U451402
Type Code: EV220B; Weight: 0.972 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 24,00 V d.c.; …
-
032U451416
Type Code: EV220B; Weight: 0.943 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 24 V a.c. 50 …
-
032U451431
Type Code: EV220B; Weight: 0.960 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 230 V a.c. 50 …
-
032U452131
Type Code: EV220B; Weight: 1.11 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 230 V a.c. 50 …
-
032U453002
Type Code: EV220B; Weight: 1.16 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 24,00 V d.c.; …
-
032U453016
Type Code: EV220B; Weight: 1.12 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 24 V a.c. 50 H …
-
032U453031
Type Code: EV220B; Weight: 1.14 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 230 V a.c. 50 …
-
032U453131
Type Code: EV220B; Weight: 1.58 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 230 V a.c. 50 …
-
032U453402
Type Code: EV220B; Weight: 1.63 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 24,00 V d.c.; …
-
032U453416
Type Code: EV220B; Weight: 1.59 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 24 V a.c. 50 H …
