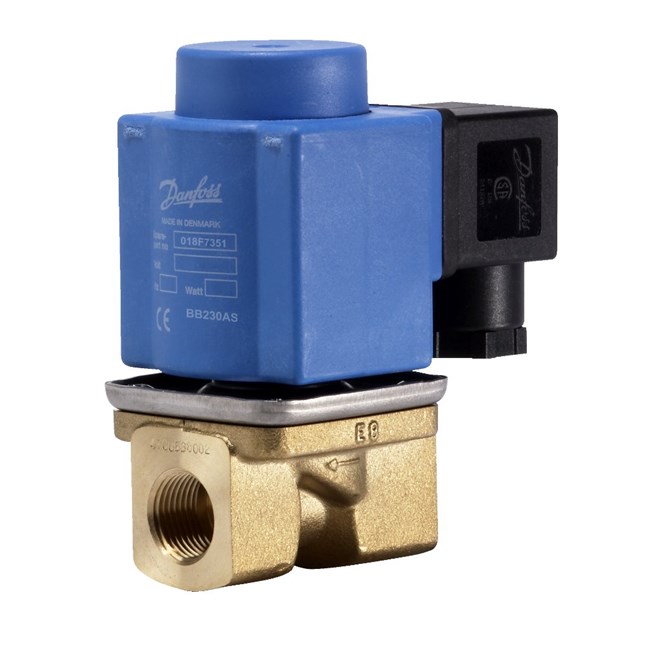

032U538031 Danfoss

Type Code: EV251B; Weight: 0.590 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: Brass; Coil: BB 230 V a.c. 50 Hz; Coil option: Clip-on; Coil type: BB; Connection: G 3/8; Conn. Int./Ext.: Internal; Conn. std.: ISO 228-1; Cv value: 1,750 gpm US; Diff. pressure: 0 - 10 bar; Diff. pressure: 0,0 - 145,0 psi; EAN no.: 5702423292523; Electr. conn.: Spade DIN 43650-A; Enclosure rating: IP65; Freq.: 50 HZ; Function: N C; Kv value: 1,500 m3/h; Max. Working Pressure: 25,0 bar; Max. Working Pressure: 363 psig; Medium temp. range: -10 - 90 °C; Medium temp. range: 14 - 194 °F; Number of ways: 2/2; Operation: Assisted lift operated; Options: 688; Orifice size: 10,00 mm; Orifice size: 3/8 in; Pack format: Multi pack; Power consumption 50 Hz: 11,0 W; Prod. group: Solenoid valves; Prod. name: Solenoid valve; Pack qty.: 12 PC; Seal mat.: NBR; Supply volt.: 230 V; Supply voltage 50Hz Max: 230 V; Type designation: Solenoid valve.

Type

EV251B, Assisted lift operated 2/2-way solenoid valves
