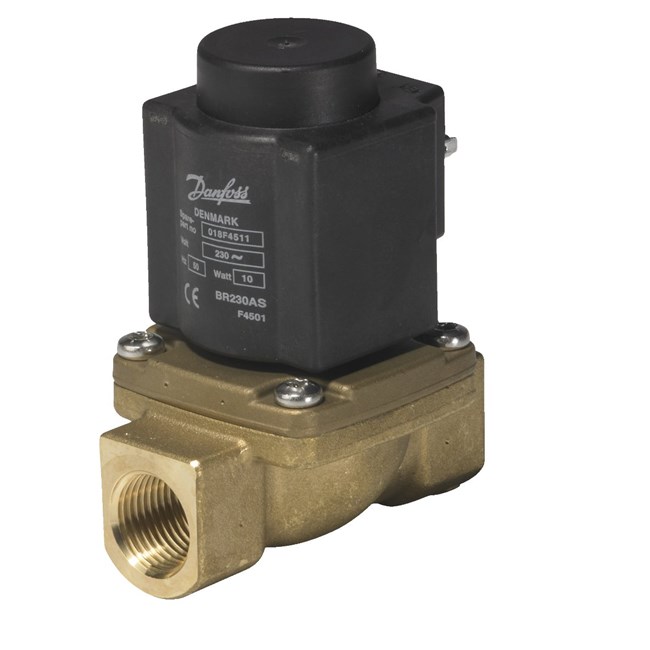

032U380420 Danfoss

Type Code: EV225B; Weight: 0.724 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 40 °C; Ambient temp. max.: 104 °F; Body mat.: DZR brass; Coil: BQ 110 V a.c. 60 Hz; Coil option: Clip-on; Coil type: BQ; Connection: G 1/2; Conn. Int./Ext.: Internal; Conn. std.: ISO 228-1; Cv value: 2,550 gpm US; Diff. pressure: 0,2 - 10 bar; Diff. pressure: 2,9 - 145,0 psi; EAN no.: 5702428473163; Electr. conn.: Spade DIN 43650-A; Enclosure rating: IP65; Freq.: 60 HZ; Function: N C; Kv value: 2,200 m3/h; Max. test pressure: 25,0 bar; Max. test pressure: 363,0 psig; Max. Working Pressure: 10,0 bar; Max. Working Pressure: 145 psig; Medium temp. range: -10 - 185 °C; Medium temp. range: 14 - 365 °F; Number of ways: 2/2; Operation: Servo-operated (diaphragm); Orifice size: 10,00 mm; Orifice size: 3/8 in; Pack format: Multi pack; Power consumpt. 60Hz: 13,5 W; Prod. group: Solenoid valves; Prod. name: Solenoid valve; Pack qty.: 12 PC; Seal mat.: PTFE; Supply volt.: 110 V; Supply voltage 60Hz Max: 120 V; Supply voltage 60Hz Min [V]: 110 V; Type designation: Solenoid valve.

Type

EV225B, Servo-operated 2/2-way solenoid valves for steam
