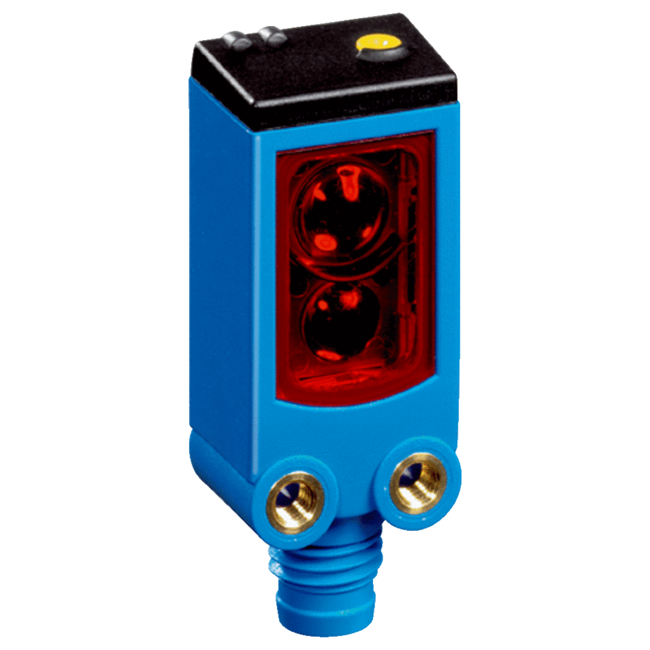

WTB4C-3P2262A70 SICK ⍾ 1080928 ⍾ WTB4C3P2262A70

Features: Sensor/ detection principle: Photoelectric proximity sensor, Background suppression; Dimensions (W x H x D): 16 mm x 39.5 mm x 12 mm; Housing design (light emission): Rectangular; Sensing range max.: 4 mm ... 150 mm 1); Sensing range: 15 mm ... 150 mm 1); Type of light: Visible red light; Light source: PinPoint LED 2); Light spot size (distance): Ø 7 mm (50 mm); Wave length: 650 nm; Adjustment: Single teach-in buttonIO-Link; Pin 2 configuration: External input, Teach-in input, Sender off input, Detection output, logic output; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: < 5 Vpp 2); Power consumption: 20 mA 3); Switching output: PNP; Output function: Complementary; Switching mode: Light/dark switching; Output current Imax.: ≤ 100 mA; Response time: < 0.5 ms 4); Response time Q/ on Pin 2: 300 µs ... 450 µs 4) 5); Switching frequency: 1,000 Hz 6); Switching frequency Q / to pin 2: 1,000 Hz 7); Connection type: Male connector M8, 4-pin; Circuit protection: A 8)C 9)D 10); Protection class: III; Weight: 30 g; Housing material: Plastic, ABS; Optics material: Plastic, PMMA; Enclosure rating: IP67IP66; Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493 & NRKH7.E181493; Repeatability Q/ on Pin 2:: 150 µs 5); Communication interface: Communication interface: IO-Link V1.1; Communication Interface detail: COM2 (38,4 kBaud); Cycle time: 2.3 ms; Process data length: 16 Bit; Process data structure: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 ... 15 = measuring value; VendorID: 26; DeviceID HEX: 0x8000FE; DeviceID DEC: 8388862; Smart Task: Smart Task name: Time measurement + debouncing; Logic function: DirectWINDOW; Timer function: DeactivatedOn delayOff delayON and OFF delayImpulse (one shot); Inverter: Yes; Time measurement accuracy: SIO Direct: ---SIO Logic: - 0,7 ... + 0,7 ms ± 0,5 % of time measurement valueIOL: - 0.9 ... + 0.9 ms ± 0.5% of the time measurement; Time measurement accuracy (e.g. accuracy for time measurement value = 1 s ): SIO Direct: ---SIO Logic: - 5,7 ... + 5,7 msIOL: - 5,9 ... + 5,9 ms; Resolution time measuring value: 1 ms; Min. Time between two process events (switches): SIO Direct: --- 1)SIO Logic: 500 µs 2)IOL: 800 µs 3); Debounce time max.: SIO Direct: ---SIO Logic: 30.000 msIOL: 30.000 ms; Switching signal QL1: Output type (dependant on the adjusted threshold); Switching signal QL2: Output type (dependant on the adjusted threshold); Measuring value: Time measurement value; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
