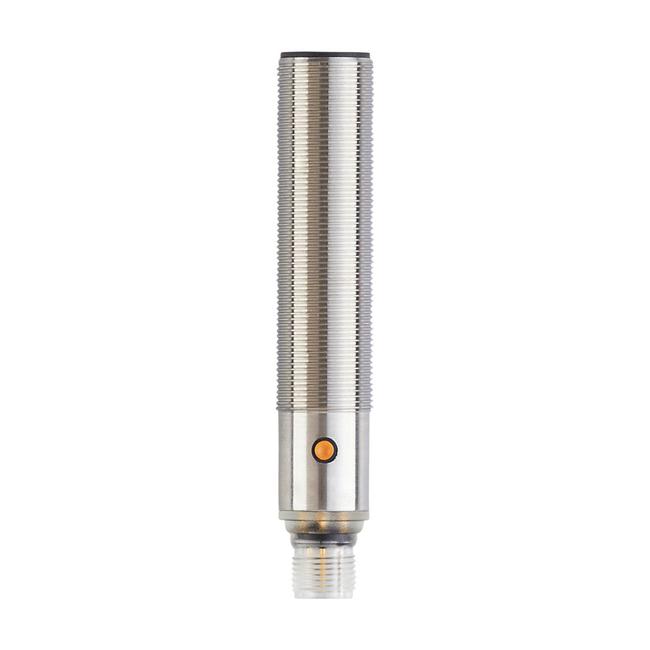

UGT518 ifm ⍾ UGA02200HOKG/US

Ultrasonic sensor; Operating voltage [V] : 10...30 DC; ("supply class 2" to cULus); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : < 0.3; Converter frequency [kHz] : 200; Total number of outputs : 2; Electrical design : NPN; Number of digital outputs : 2; Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2.2; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 2; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 200...2200; (Target: 200 x 200 mm); Blind zone [mm] : 200; Angle of aperture cylindrical [°] : 14; (±2); Max. deviation from the 90° angle sensor/object [°] : ± 4; Temperature compensation : yes; Hysteresis [%] : < 2; Switch point drift [%] : -2...2; Notes on the accuracy / deviation : The indicated values are reached after a warm-up time of min. 20 minutes; Repeatability : 1 %; Resolution [mm] : 1; Ambient temperature [°C] : -20...70; Storage temperature [°C] : -30...80; Housing : threaded type; Thread designation : M18 x 1; Materials : stainless steel (1.4404 / 316L); PA; epoxy glass ceramics; Tightening torque [Nm] : 50; Teach function : yes; Items supplied : lock nuts: 2, stainless steel

Tipo

Sensores ultrasónicos

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

55 mA

Suministro de voltaje

24 V

Mostrar

switching status: 2 x LED, yellow | echo: 1 x LED, green

Grado de protección

IP 67

Peso

101 g

Dimensiones

M18 x 1 / L = 97.5 mm
