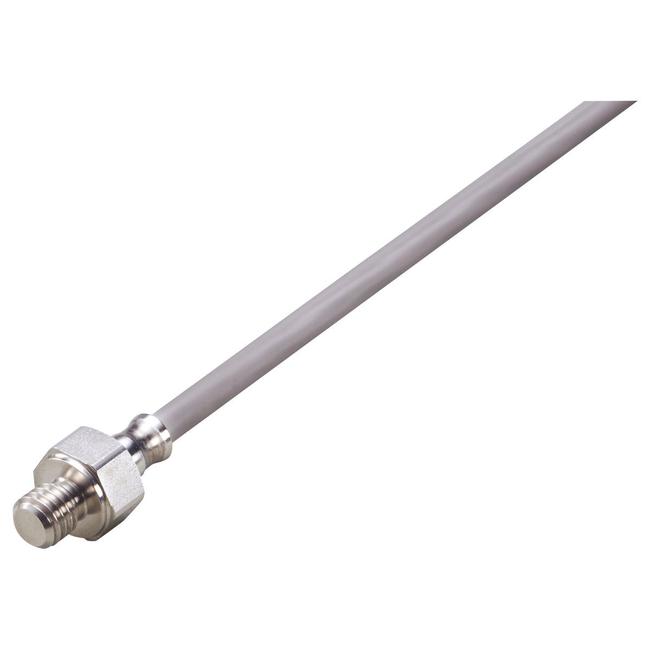

TS285A ifm ⍾ TS-200KLKM08..../3D/3G

Temperature cable sensor with screw-in sensor; Operating voltage [V] : < 6 DC; Insulation rating [V] : 2500; (insulation between sensor housing and internal structure of the sensor); Protection class : III; Measuring range : -20...115 °C: -4...239 °F; Note on measuring range : measuring range for non-ATEX applications: -20...150 °C / -4...302 °F; Accuracy [K] : ± (0,15 K + 0,002 x|t|); Dynamic response T05 / T09 [s] : 8 / 20; (for water (70 °C; 0,04 m/s)); Housing : screw-in sensor; Thread designation : M8; Materials : stainless steel (1.4404 / 316L); Process connection : threaded connection M8 external thread

Tipo

Sensores de temperatura

Conexión

Cable: 2 m, silicone; 4 x 0.34 mm²

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

< 50 mA

Suministro de voltaje

24 V

Mostrar

Display unit: 2 x LED, green | switching status: 2 x LED, yellow | measured values: alphanumeric display, red/green 4-digit

Grado de protección

IP 67

Peso

108.15 g

Dimensiones

M8 mm
