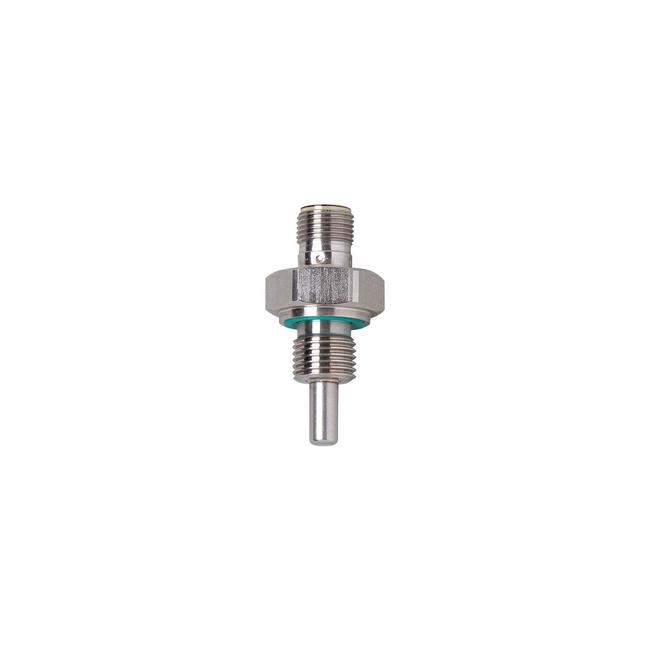

TM5101 ifm ⍾ TM-025KCBR14- /US/

Temperature sensor with process connection; Protection class : III; Probe length L [mm] : 12; Measuring range : -40...150 °C: -40...302 °F; Accuracy [K] : ± (0,15 K + 0,002 x|t|); Dynamic response T05 / T09 [s] : 1 / 3; (to DIN EN 60751); Ambient temperature [°C] : -25...80; Storage temperature [°C] : -40...100; Materials : stainless steel (1.4404 / 316L); Materials (wetted parts) : stainless steel (1.4404 / 316L); FKM; Tightening torque [Nm] : 35; Process connection : threaded connection G 1/4; Probe diameter [mm] : 6; Installation length EL [mm] : 25

Tipo

Sensores de temperatura

Conexión

Connector: 1 x M12; Contacts: gold-plated

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

< 30 mA

Suministro de voltaje

24 V

Mostrar

switching status: 2 x LED, yellow

Grado de protección

IP 68; IP 69K

Peso

45.7 g

Dimensiones

Ø 6 mm
