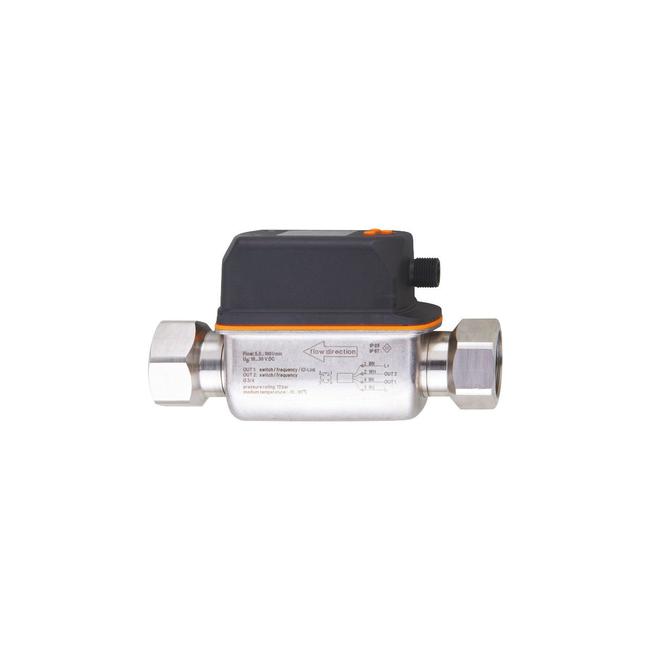

SV7614 ifm ⍾ SVN34XXX50KG/US-100

Vortex flow meter with display; Operating voltage [V] : 18...30 DC; Min. insulation resistance [MΩ] : 100; (500 V DC); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : < 3; Total number of outputs : 2; Output signal : analogue signal; Number of analogue outputs : 2; Analogue current output [mA] : 4...20; Max. load [Ω] : 500; Short-circuit protection : yes; Overload protection : yes; Measuring range : 80...1585 gph: 1.3...26.4 gpm; Display range : 0...1900 gph: 0...31.7 gpm; Resolution : 5 gph: 0.1 gpm; Analogue start point ASP : 0...1270 gph: 0...21.1 gpm; Analogue end point AEP : 315...1585 gph: 5.3...26.4 gpm; In steps of : 5 gph: 0.1 gpm; Measuring dynamics : 1:20; Dynamic response T05 / T09 [s] : T09 = 6; Response time [s] : 1; (dAP = 0); Damping for the switching output dAP [s] : 0...5; Parameter setting options : Damping for the analogue output dAA; Display unit; Ambient temperature [°F] : 32...140; Note on ambient temperature : medium temperature < 176 °F | medium temperature < 194 °F: 32...122 °F; Storage temperature [°F] : -4...176; Materials : stainless steel (1.4404 / 316L); PC; PBT+PC-GF30; PPS; TPE-U; Materials (wetted parts) : stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM; Tightening torque [Nm] : 30; Process connection : threaded connection 3/4" NPT DN20

Tipo

Sensores de caudal / caudalímetros

Conexión

Connector: 1 x M12; Contacts: gold-plated

Número de entradas/salidas

Number of analogue outputs: 2

Consumo actual

< 30 mA

Suministro de voltaje

24 V

Mostrar

Display unit: 6 x LED, green (l/min, m³/h, gpm, gph, °C, °F) | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Grado de protección

IP 65; IP 67

Peso

514.5 g

Dimensiones

104.5 x 32.5 x 113.6 mm
