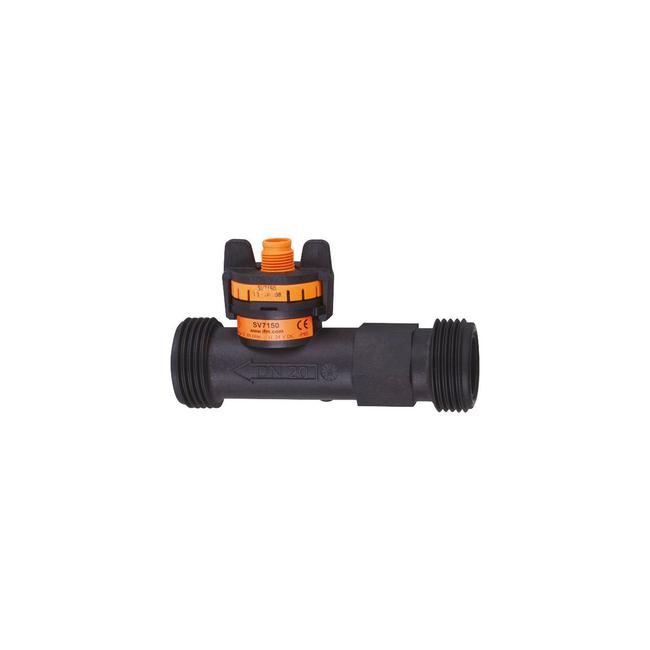

SV7150 ifm ⍾ SVM11XXXD0KG/US-100

Vortex flow meter; Operating voltage [V] : 8...33 DC; Min. insulation resistance [MΩ] : 100; (500 V DC); Protection class : III; Power-on delay time [s] : < 2; Total number of outputs : 1; Output signal : analogue signal; Number of analogue outputs : 1; Analogue current output [mA] : 4...20; (water: Q [l/min] = 5,313 x (I - 4 mA); water-glycol: Q [l/min] = 5,313 x (I - 4 mA) - Qo see Figure 2); Max. load [Ω] : < (Ub - 8 V) / 20 mA; Ub = 24 V: 800; Measuring range : 5...85 l/min: 0.265...4.509 m/s; Accuracy [K] : ± 0,3 ± 0,005 x T; Response time [s] : 0.5; Ambient temperature [°C] : -15...85; Note on ambient temperature : medium temperature > 0 °C: -30...85; Storage temperature [°C] : -30...85; Cavitation : P(absolute) discharge / P(difference) > 5.5 to avoid cavitation; Materials : PA 6T; Materials (wetted parts) : ETFE; PA 6T; EPDM; Tightening torque [Nm] : 12; Process connection : threaded connection G 1 DN20

Tipo

Sensores de caudal / caudalímetros

Conexión

Connector: 1 x M12; Contacts: gold-plated

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 30 mA

Suministro de voltaje

24 V

Mostrar

Display unit: 6 x LED, green (l/min, m³/h, gpm, gph, °C, °F) | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Grado de protección

IP 65

Peso

104 g

Dimensiones

104.5 x 32.5 x 113.6 mm
