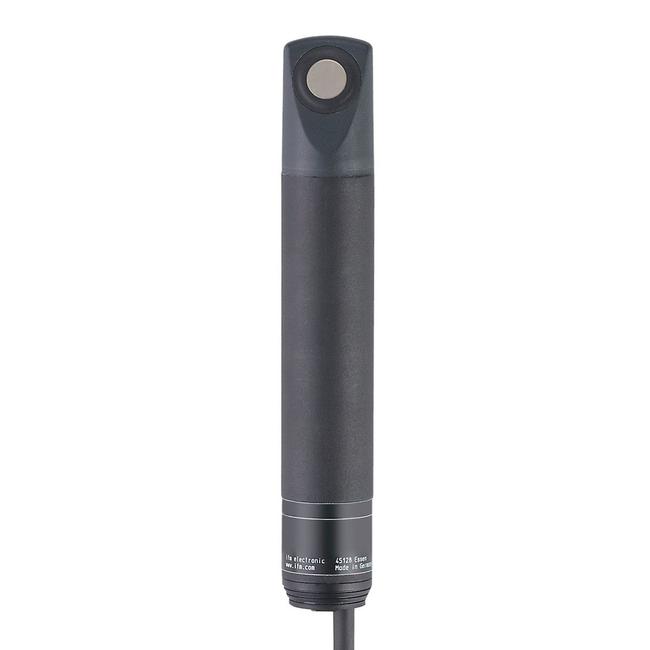

SL0201 ifm ⍾ SLG23CEEAKOW/24VAC

Air flow monitors; Operating voltage tolerance [%] : -10...10; Operating voltage [V] : < 24 AC; Min. insulation resistance [MΩ] : 100; (500 V DC); Reverse polarity protection : no; Power-on delay time [s] : 60; Output signal : switching signal; Number of relay outputs : 1; Contact rating : 3 A (30 V DC / 250 V AC); Switching function flow monitoring : relay energised when flow is present; Short-circuit proof : no; Overload protection : no; Response time [s] : 3...60; Temperature gradient [K/min] : 5; Adjustment of the switch point : potentiometer; Ambient temperature [°C] : -10...50; Storage temperature [°C] : -25...85; Materials : housing: PBT; sensor surface: titanium; Materials (wetted parts) : PBT; titanium; Process connection : Ø 23 mm; Items supplied : Mounting clamp: 1, E40048

Tipo

Sensores de caudal / caudalímetros

Conexión

Cable: 2 m, PUR; 4 x 0.5 mm²

Número de entradas/salidas

Number of relay outputs: 1

Consumo actual

50 mA

Suministro de voltaje

24 V

Mostrar

function: 1 x LED, red | function: 1 x LED, green

Grado de protección

IP 65

Peso

198.5 g

Dimensiones

Ø 23 / L = 142 mm
