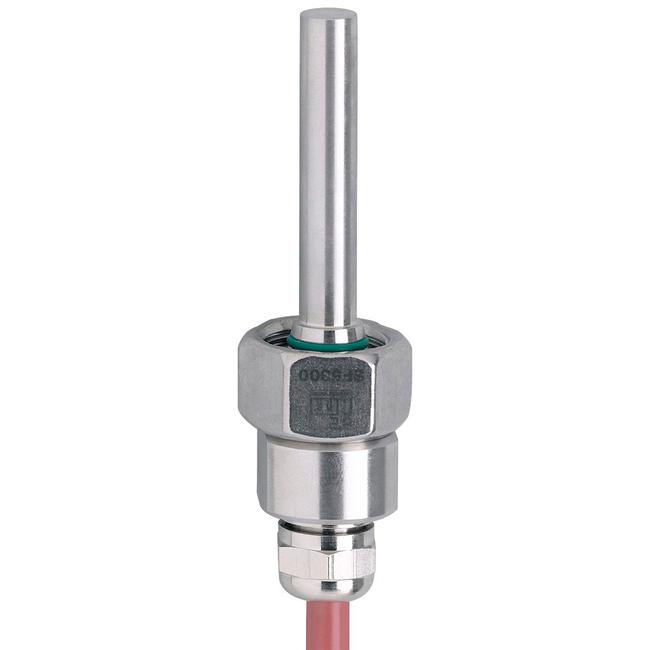

SF5300 ifm ⍾ SFD10ZDB /6M

Flow sensor for connection to an evaluation unit; Setting range [cm/s] : 3...300; Greatest sensitivity [cm/s] : 3...60; Setting range [cm/s] : 200...3000; Greatest sensitivity [cm/s] : 200...800; Connection to control monitor : VS3000; Probe length L [mm] : 45; Temperature gradient [K/min] : 300; Response time [s] : 1...10; Housing : for adapter; Thread designation : M18 x 1.5; Materials : Lock nut: stainless steel; Cable gland: FKM; nut for cable gland: brass nickel-plated; Sleeve: brass nickel-plated; Materials (wetted parts) : stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A; Process connection : M18 x 1,5 internal thread

Tipo

Sensores de caudal / caudalímetros

Conexión

Cable: 6 m, silicone; Maximum cable length: 100 m; 5 x 0.34 mm²

Número de entradas/salidas

Number of digital outputs: 2; Number of analogue outputs: 1

Consumo actual

< 100 mA

Suministro de voltaje

24 V

Mostrar

Display unit: 5 x LED, green (Nl/min, Nm³/h, Nm/s, Nm³, °C) | function display: 1 x LED, green | switching status: 2 x LED, yellow | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Grado de protección

IP 67

Peso

454.5 g

Dimensiones

M18 x 1.5 mm
