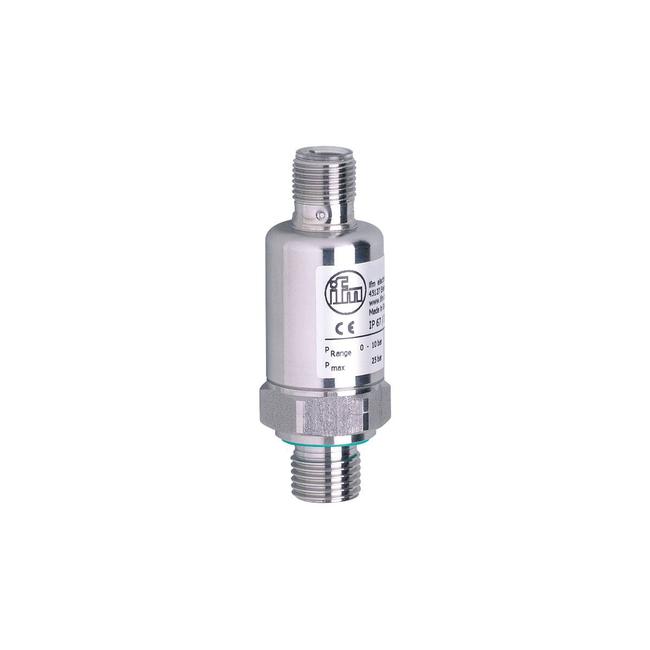

PC9050 ifm ⍾ PT-400-SBG14-C-DVG/ /W

Pressure transmitter; Operating voltage [V] : 5 DC; (ratiometric); Min. insulation resistance [MΩ] : 100; (80 V DC); Protection class : III; Reverse polarity protection : yes; Total number of outputs : 1; Output signal : analogue signal; Number of analogue outputs : 1; Analogue voltage output [V] : 0.5...4.5; Min. load resistance [Ω] : 5000; Measuring range [bar] : 0...400; Repeatability [% of the span] : < ± 0,1; (with temperature fluctuations < 10 K); Characteristics deviation [% of the span] : < ± 1,0; (incl. drift when overtightened, zero point and span error); Linearity deviation [% of the span] : < ± 0,25 (BFSL) / < ± 0,5 (LS); Hysteresis deviation [% of the span] : < ± 0,2; Long-term stability [% of the span] : < ± 0,1; (per 6 months); Temperature drift per 10 K : < ± 0.5; Step response time analogue output [ms] : 8; Ambient temperature [°C] : -25...90; Storage temperature [°C] : -40...100; Materials : stainless steel (1.4404 / 316L); PA; Materials (wetted parts) : stainless steel (1.4404 / 316L); FKM; Min. pressure cycles : 50 million; Process connection : threaded connection G 1/4 external thread; Restrictor element integrated : yes

Tipo

Sensores de presión

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 6 mA

Suministro de voltaje

24 V

Mostrar

transmitter: 4 x LED | receiver: 6 x LED | receiver: LC display

Grado de protección

IP 67; IP 69K

Peso

80.5 g

Dimensiones

1136 x 50 x 60 mm
