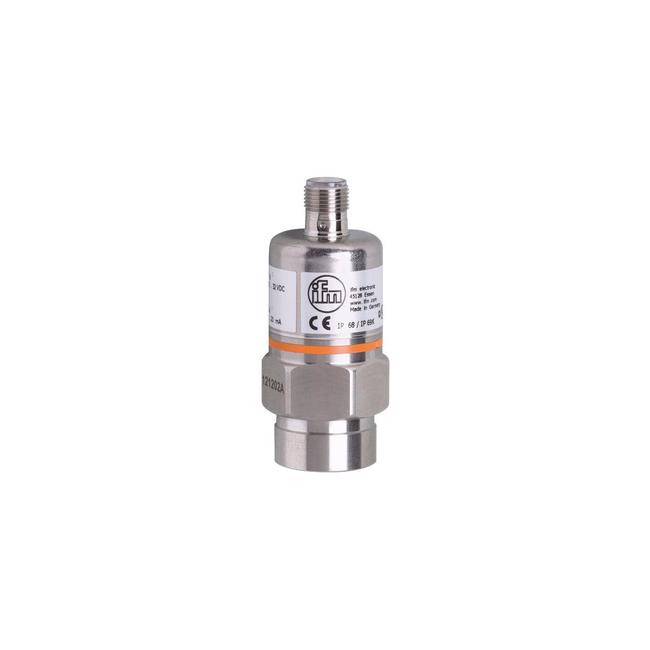

PA3024 ifm ⍾ PA-010-RBR14-A-ZVG/US/ /V

Pressure transmitter with ceramic measuring cell; Operating voltage [V] : 9.6...32 DC; Min. insulation resistance [MΩ] : 100; (500 V DC); Protection class : III; Reverse polarity protection : yes; Total number of outputs : 1; Output signal : analogue signal; Number of analogue outputs : 1; Analogue current output [mA] : 4...20; Max. load [Ω] : 720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA); Overload protection : yes; Measuring range : 0...10 bar: 0...145 psi: 0...1000 kPa: 0...1 MPa; Repeatability [% of the span] : < 0,1; (with temperature fluctuations < 10 K); Characteristics deviation [% of the span] : < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting); Long-term stability [% of the span] : < ± 0,05; (per 6 months); Temperature coefficient zero point [% of the span / 10 K] : 0,1; (0...80 °C); Temperature coefficient span [% of the span / 10 K] : 0,2; (0...80 °C); Step response time analogue output [ms] : 3; Ambient temperature [°C] : -25...80; Storage temperature [°C] : -40...100; Materials : stainless steel (1.4404 / 316L); FKM; PA; EPDM/X; Materials (wetted parts) : stainless steel (1.4305 / 303); ceramics; FKM; Min. pressure cycles : 100 million; Process connection : threaded connection G 1/4 internal thread; Restrictor element integrated : no (can be retrofitted)

Connection: Connector: 1 x M12; Contacts: gold-plated
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: 125 mA
Voltage supply: 24 V
Display: transmitter: 4 x LED | receiver: 6 x LED | receiver: LC display
Degree of protection: IP 65
Weight: 226 g
Dimensions: 1136 x 50 x 60 mm
