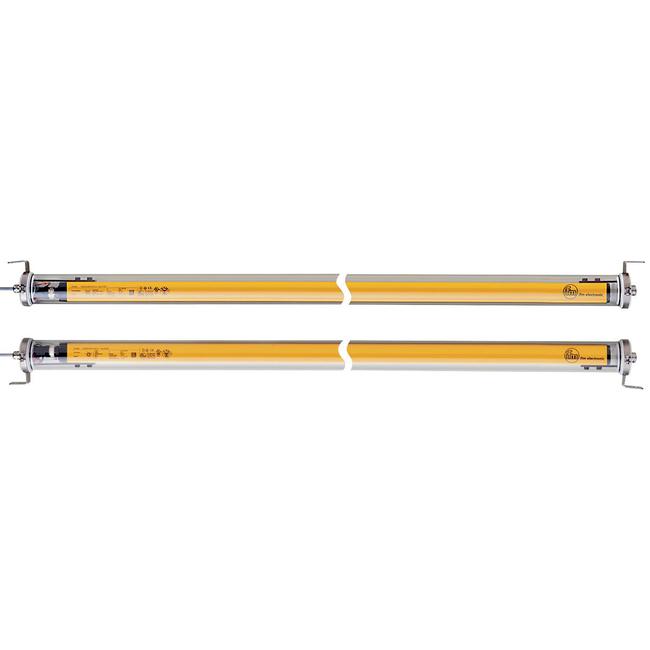

OY411S ifm ⍾ OYA0510-02-2-09-P-1-A

Safety light grids; Operating voltage tolerance [%] : 20; Operating voltage [V] : 24 DC; Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : < 2; Type of light : infrared light; Wave length [nm] : 950; Current consumption heating [mA] : 333; Electrical design : PNP; Number of OSSD outputs : 2; Max. current load per OSSD output [mA] : 400; (24 V); Short-circuit protection : yes; Protected area height [mm] : 510; Number of beams : 2; Protection area width (low light intensity) [m] : 0...3; Protection area width (high light intensity) [m] : 2...10; Response time [ms] : 3; Ambient temperature [°C] : -20...55; Max. relative air humidity [%] : 95; ESPE type (IEC 61496-1) : 2; ISO 13849-1 : category 2, PL c; IEC 62061 : SIL cl 1; Mission time TM [h] : 175200; Safety-related reliability PFHD [1/h] : 1.7E-08; Materials : thermowell: PMMA transparent; Protective cap: POM; clamp: stainless steel (1.4404 / 316L); Sealing: silicone; Length L [mm] : 777

Tipo

Barreras fotoeléctricas de seguridad

Conexión

Cable: 15 m, PVC; 8 x 0.34 mm²

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

42 mA

Suministro de voltaje

24 V

Mostrar

transmitter: 1 x LED | receiver: 2 x LED

Grado de protección

IP 65; IP 67; IP 69K; (with protective tube: IP 69K)

Peso

4655 g

Dimensiones

Ø 56 / L = 777 mm
