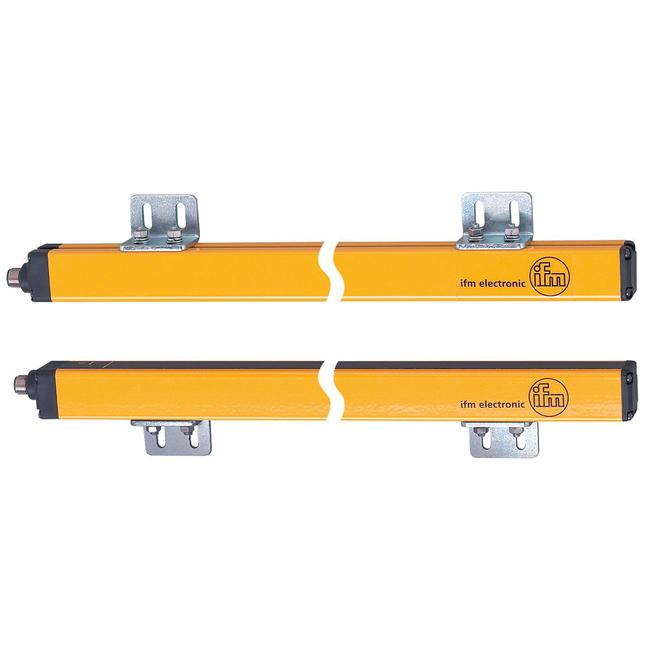

OY070S ifm ⍾ OYA1510-40-4-12-P-1

Safety light curtain; Operating voltage tolerance [%] : 20; Operating voltage [V] : 24 DC; Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : < 2; Type of light : infrared light; Wave length [nm] : 950; Electrical design : PNP; Number of OSSD outputs : 2; Max. current load per OSSD output [mA] : 400; (24 V); Short-circuit protection : yes; Protected area height [mm] : 1510; Resolution (detection capacity d) [mm] : 40; Protection area width (low light intensity) [m] : 0...4; Protection area width (high light intensity) [m] : 3...12; Response time [ms] : 13; Applications : class C to EN 60654-1 weatherproof application; Ambient temperature [°C] : -10...55; Storage temperature [°C] : -20...70; Max. relative air humidity [%] : 95; ESPE type (IEC 61496-1) : 4; ISO 13849-1 : category 4, PL e; IEC 61508 : SIL 3; IEC 62061 : SIL cl 3; Mission time TM [h] : 175200; Safety-related reliability PFHD [1/h] : 1.5E-08; Materials : housing: aluminium; front lens: PC; Length L [mm] : 1563; Items supplied : mounting bracket: 6 | slot nuts: 6 | Nuts

Tipo

Utilización en automatización industrial

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

42 mA

Suministro de voltaje

24 V

Mostrar

transmitter: 1 x LED | receiver: 2 x LED

Grado de protección

IP 65; IP 67

Peso

4910 g

Dimensiones

1563 x 28 x 30 mm
