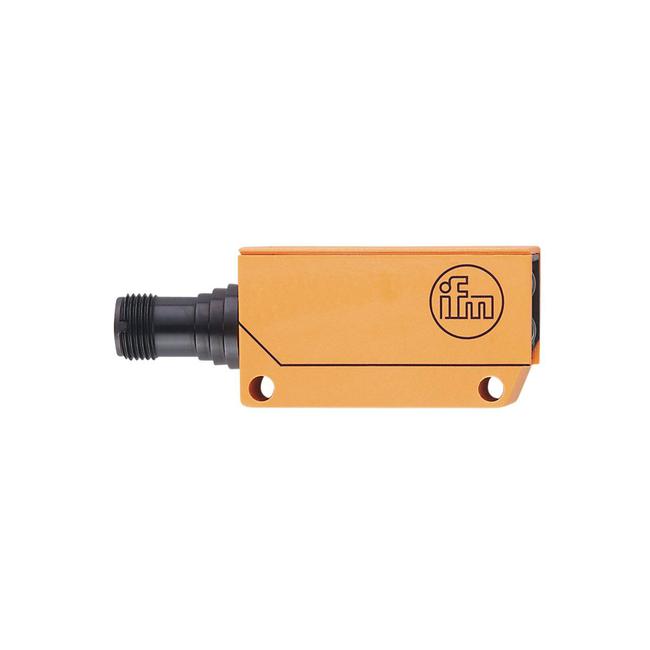

OU5080 ifm ⍾ OUP-HPKG/US-100-DPO

Retro-reflective sensor; Operating voltage [V] : 10...55 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 660; Electrical design : PNP; Output function : light-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Switching frequency DC [Hz] : 160; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range referred to prismatic reflector [m] : 0.15...1.5; (Prismatic reflector Ø 80 E20005); Range adjustable : yes; Max. light spot diameter [mm] : 475; Light spot dimensions refer to : at maximum range; Polarisation filter available : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : PPO modified; Lens material : glass; Lens alignment : side lens; Items supplied : Angle bracket: 1, E20211

Tipo

Fotocélulas

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

30; ((24 V)) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

74.5 g

Dimensiones

28 x 16 x 51 mm
