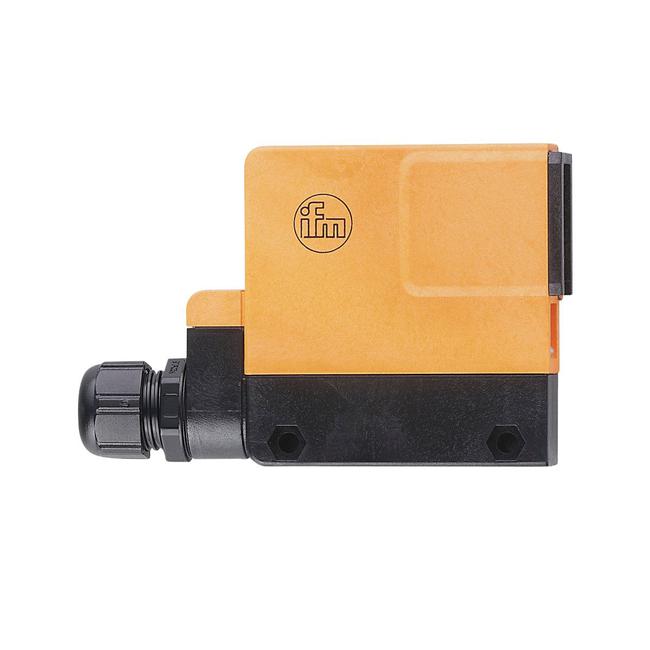

OS0025 ifm ⍾ OSR-FBOA

Retro-reflective sensor; Operating voltage [V] : 20...250 AC/DC; Protection class : II; Reverse polarity protection : no; Type of light : infrared light; Wave length [nm] : 950; Output function : light-on/dark-on mode; (programmable); Minimum load current [mA] : 15; Max. leakage current [mA] : 6; Permanent current rating of switching output AC [mA] : 250; (350 (...50 °C)); Permanent current rating of switching output DC [mA] : 250; (350 (...50 °C)); Short-time current rating of switching output [mA] : 2200; (10 ms / 0,5 Hz); Switching frequency AC [Hz] : 250; Switching frequency DC [Hz] : 250; Short-circuit proof : no; Overload protection : no; Range referred to prismatic reflector [m] : 10; (Prismatic reflector Ø 80 E20005); Range adjustable : yes; Ambient temperature [°C] : -25...80; Housing : rectangular; Materials : PPO modified; Lens material : glass; Lens alignment : side lens; Items supplied : Angle bracket: 1, E20210 | screwdrivers

Tipo

Fotocélulas

Conexión

terminals: ...1.5 mm²; Cable gland: M20 X 1.5

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

18 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 65

Peso

268 g

Dimensiones

80 x 28 x 95 mm
