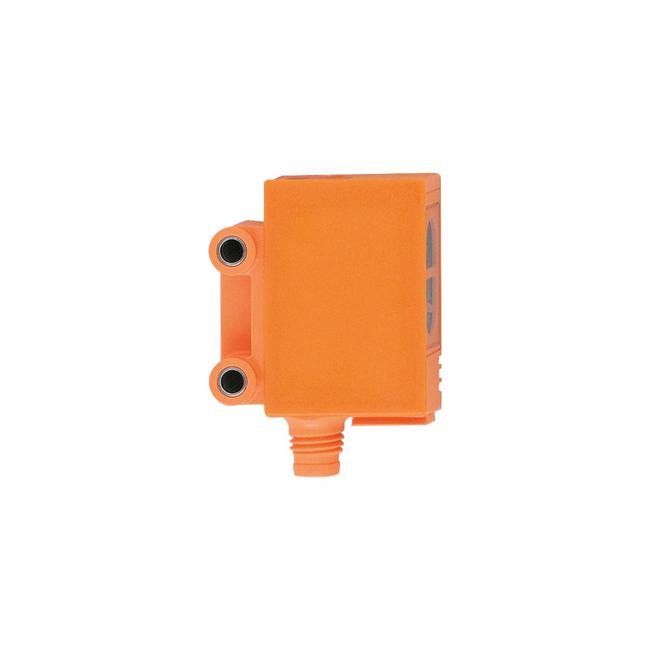

OJH200 ifm ⍾ OJH-HPKG/SO/AS

Diffuse reflection sensor with background suppression; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 660; Electrical design : PNP; Output function : light-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range [mm] : < 100; (fixed); Range adjustable : no; Max. light spot diameter [mm] : 13; Light spot dimensions refer to : at maximum range; Background suppression available : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : ABS; SEPS; Lens material : PMMA; Lens alignment : side lens

Tipo

Fotocélulas

Conexión

Connector: 1 x M8

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

25 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

15.7 g

Dimensiones

35 x 11 x 24 mm
