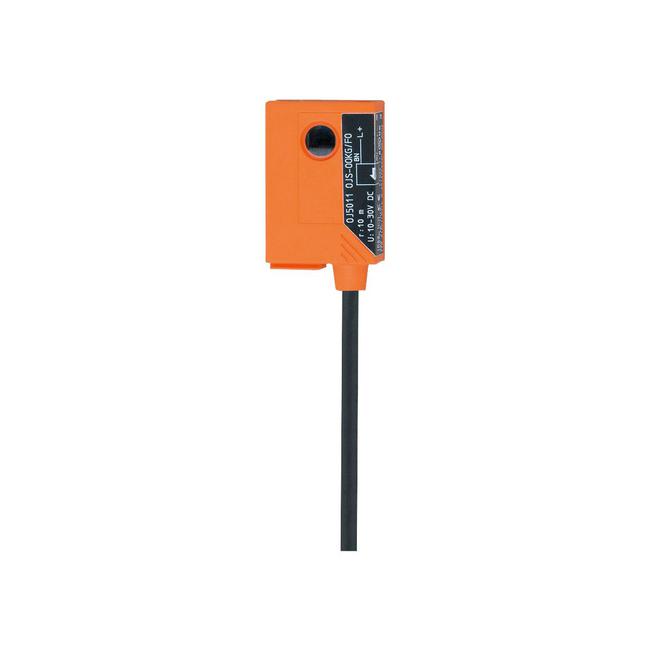

OJ5065 ifm ⍾ OJS-OOKG/FO/0,15M/US

Through-beam sensor transmitter; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 660; Overload protection : yes; Transmitter / receiver : transmitter; Range [m] : < 10; Max. light spot diameter [mm] : 1000; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS; Lens material : glass; Lens alignment : front lens; Items supplied : Basic clip: 1, E20964 | screws: 2 x M3 x 16 | spring washers: 2 | Nuts: 2

Tipo

Fotocélulas

Conexión

Connector: 1 x M12; Moulded body: Hytrel 8068; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

< 19 mA

Suministro de voltaje

24 V

Mostrar

operation: 1 x LED, green

Grado de protección

IP 67

Peso

52.8 g

Dimensiones

35 x 24 x 11 mm
