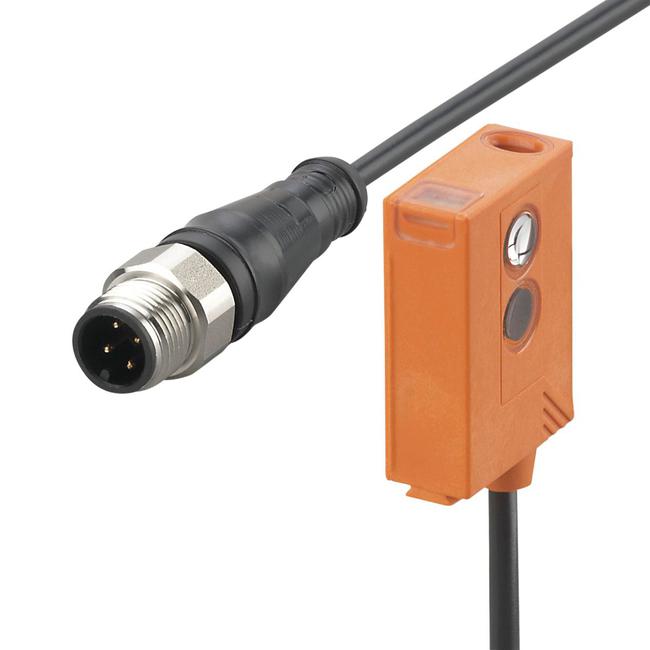

OJ5060 ifm ⍾ OJB-FPKG/FO/0,15M/US

Diffuse reflection sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 660; Electrical design : PNP; Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 2000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range [mm] : 1...600; (white paper 200 x 200 mm 90% remission); Range adjustable : yes; Max. light spot diameter [mm] : 60; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS; Lens material : glass; Lens alignment : front lens; Electronic lock : yes; Items supplied : Basic clip: 1, E20964 | screws: 2 x M3 x 16 | spring washers: 2 | Nuts: 2

Tipo

Fotocélulas

Conexión

Connector: 1 x M12; Moulded body: Hytrel 8068; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

< 22 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow | operation: 1 x LED, green | function: 1 x LED, red

Grado de protección

IP 67

Peso

54.4 g

Dimensiones

35 x 24 x 11 mm
