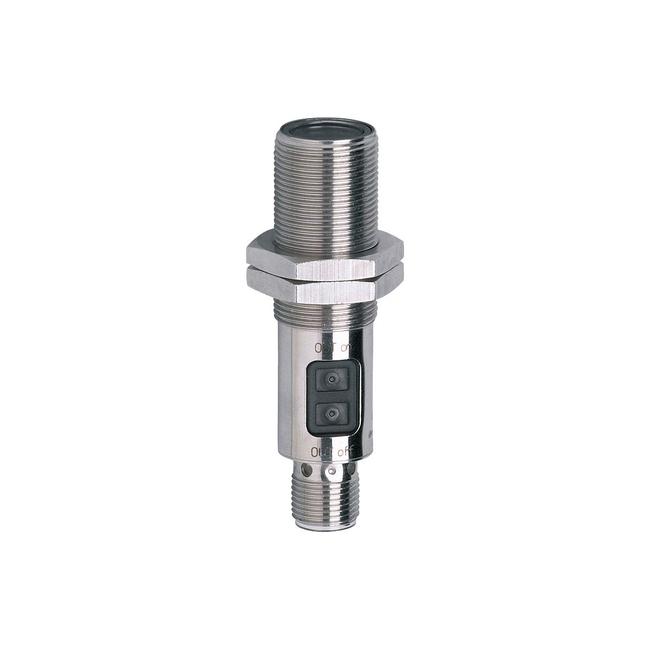

OGP503 ifm ⍾ OGP-FNKG/US100

Retro-reflective sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 624; Electrical design : NPN; Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 150; (200 (...60 °C)); Switching frequency DC [Hz] : 2000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range referred to prismatic reflector [m] : 0.03...5; (Prismatic reflector Ø 80 E20005); Factory setting : dark-on mode; Range adjustable : yes; Max. light spot diameter [mm] : 200; Light spot dimensions refer to : at maximum range; Polarisation filter available : yes; Ambient temperature [°C] : -25...80; Housing : threaded type; Thread designation : M18 x 1; Materials : stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU; Lens material : PMMA; Items supplied : lock nuts: 2 x

Tipo

Fotocélulas

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

20 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

60.8 g

Dimensiones

M18 x 1 / L = 72 mm
