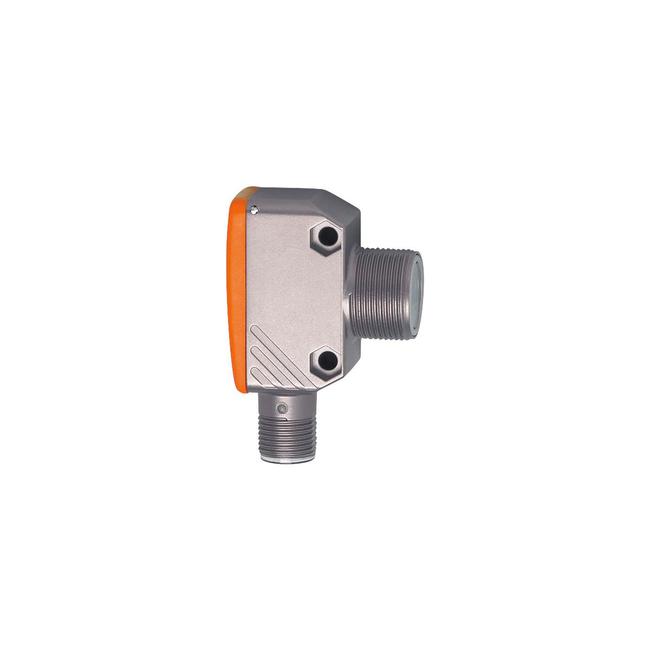

OGP283 ifm ⍾ OGP-HNKG/US/CUBE

Retro-reflective sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 662; Electrical design : NPN; Output function : light-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range referred to prismatic reflector [m] : 0.1...4; (Prismatic reflector Ø 80 E20005); Range adjustable : no; Max. light spot diameter [mm] : 160; Light spot dimensions refer to : at maximum range; Polarisation filter available : yes; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9; Profiles : Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel; SIO mode : yes; Required master port type : A; Min. process cycle time [ms] : 2.5; IO-Link process data (cyclical) : function: bit length | device status: 4 | binary switching information: 1; IO-Link functions (acyclical) : application specific tag; operating hours counter; switching cycles counter; Supported DeviceIDs : Type of operation: DeviceID | Default: 1146; Note : For further information please see the IODD PDF file under "Downloads"; Ambient temperature [°C] : -25...60; Storage temperature [°C] : -40...60; Housing : rectangular; Materials : diecast zinc; PEI; Lens material : PMMA; Lens alignment : side lens; Items supplied : lock nut: 1 x

Tipo

Fotocélulas

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

21 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow | operation: 1 x LED, green

Grado de protección

IP 65; IP 67

Peso

60 g

Dimensiones

52.6 x 19.1 x 36.1 mm
