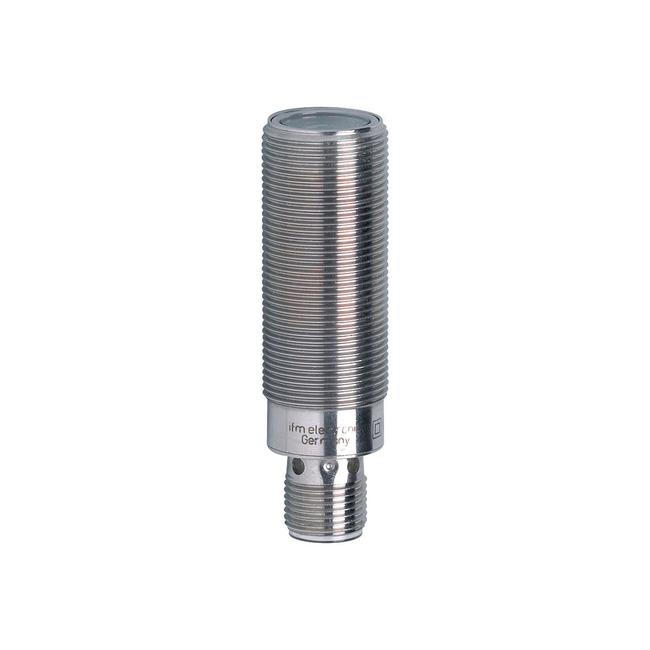

OGE201 ifm ⍾ OGE-HPKG/US100

Through-beam sensor receiver; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 624; Electrical design : PNP; Output function : light-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Transmitter / receiver : receiver; Range [m] : < 20; Range adjustable : no; Ambient temperature [°C] : -25...60; Housing : threaded type; Thread designation : M18 x 1; Materials : housing: stainless steel (1.4404 / 316L); Lens material : PMMA; Items supplied : lock nuts: 2 x

Tipo

Fotocélulas

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

10 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

49.7 g

Dimensiones

M18 x 1 / L = 60 mm
