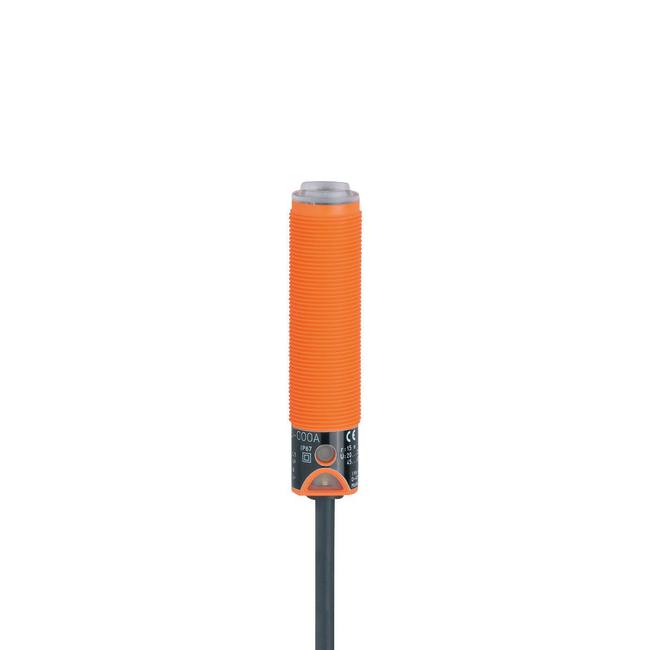

OG0034 ifm ⍾ OGT-HBOA

Diffuse reflection sensor; Frequency AC [Hz] : 47...63; Operating voltage [V] : 20...250 AC/DC; Protection class : II; Reverse polarity protection : no; Type of light : infrared light; Wave length [nm] : 880; Output function : light-on mode; Max. voltage drop switching output DC [V] : 8; Max. voltage drop switching output AC [V] : 8; Minimum load current [mA] : 5; Max. leakage current [mA] : 1.7; Permanent current rating of switching output AC [mA] : 90; (180 (...40 °C)); Permanent current rating of switching output DC [mA] : 90; (180 (...40 °C)); Short-time current rating of switching output [mA] : 600; (20 ms / 0,5 Hz); Switching frequency AC [Hz] : 25; Switching frequency DC [Hz] : 25; Short-circuit proof : no; Overload protection : no; Range [mm] : 1...600; (white paper 200 x 200 mm 90% remission); Max. light spot diameter [mm] : 169; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...80; Housing : threaded type; Thread designation : M18 x 1; Materials : PBT; Lens material : PMMA; Items supplied : lock nuts: 2 x

Tipo

Fotocélulas

Conexión

Cable: 2 m, PVC; 2 x 0.5 mm²

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

< 5 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, red | function: 1 x LED, red flashing

Grado de protección

IP 67

Peso

121.3 g

Dimensiones

M18 x 1 / L = 78.5 mm
